Adjusting Chaffer, Chaffer Extension and Sieve

NOTE: The chaffer extension adjusting process is similar to the chaffer adjusting process

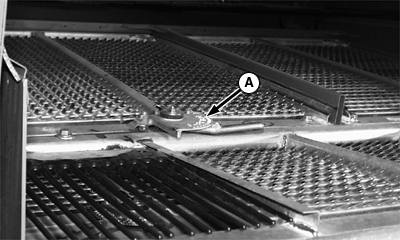

Chaffer can be adjusted with lever (A) and notched dial scale.

One notch on the dial scale is equal to 1 mm (1/32 in.).

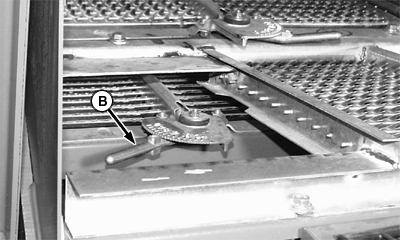

Remove the chaffer fingers to access the sieve adjusting lever (B).

A-Lever
B-Sieve Adjusting Lever
