Total Loss

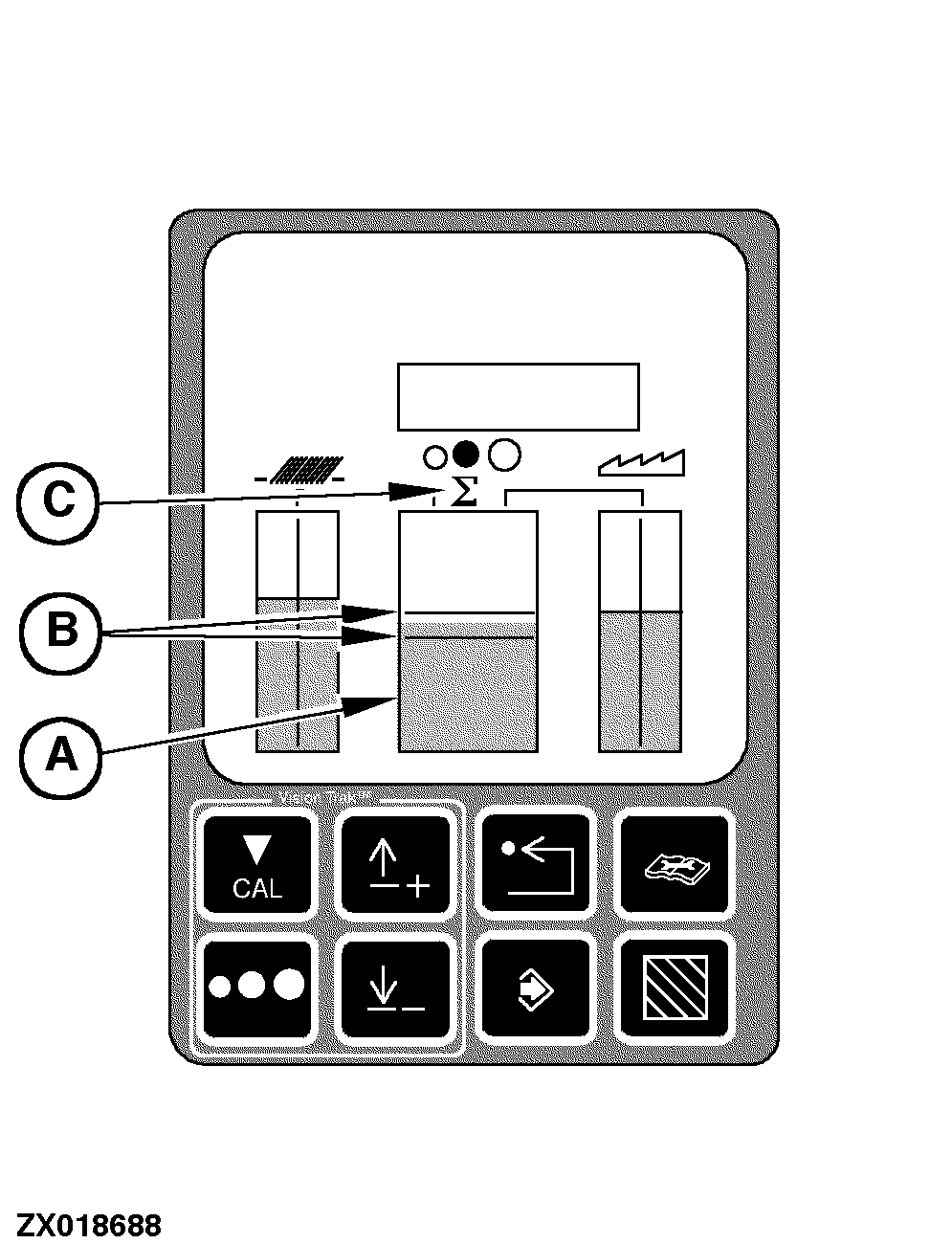

Total loss will be shown on a vertical bar graph (A) located in the center of the lower portion of the display. When the graph is between the two horizontal lines (B) the loss is at the level for which it was calibrated. A summation symbol (C) is displayed above the bar graph.

A-Vertical Bar Graph
B-Horizontal Lines
C-Summation Symbol
