Diagnostic Icon

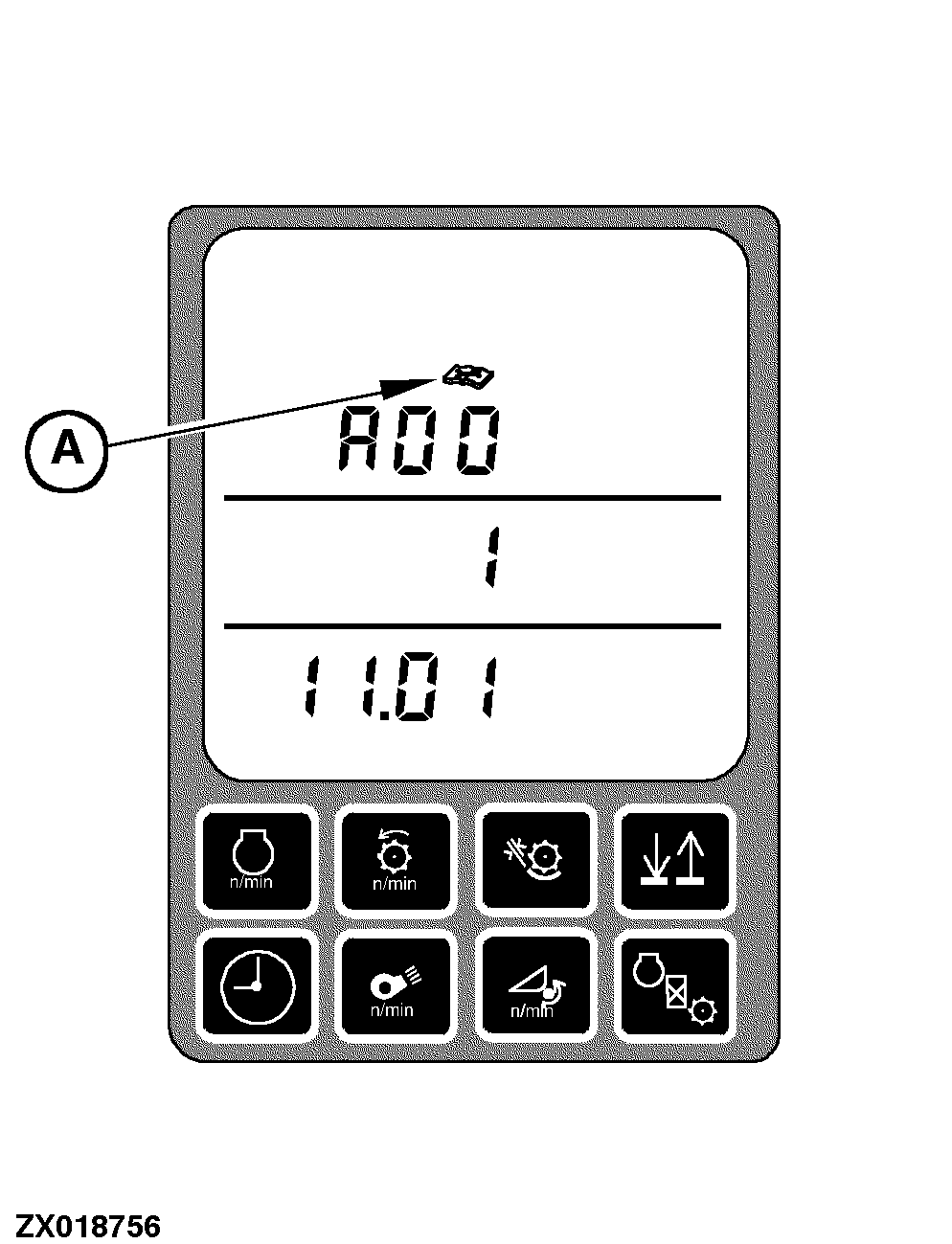

Diagnostic icon, steady

Diagnostic Icon (A) is on steady and a diagnostic trouble code is displayed on the three lines. This means a corrective action is immediately required. Do not operate combine until the problem is corrected.

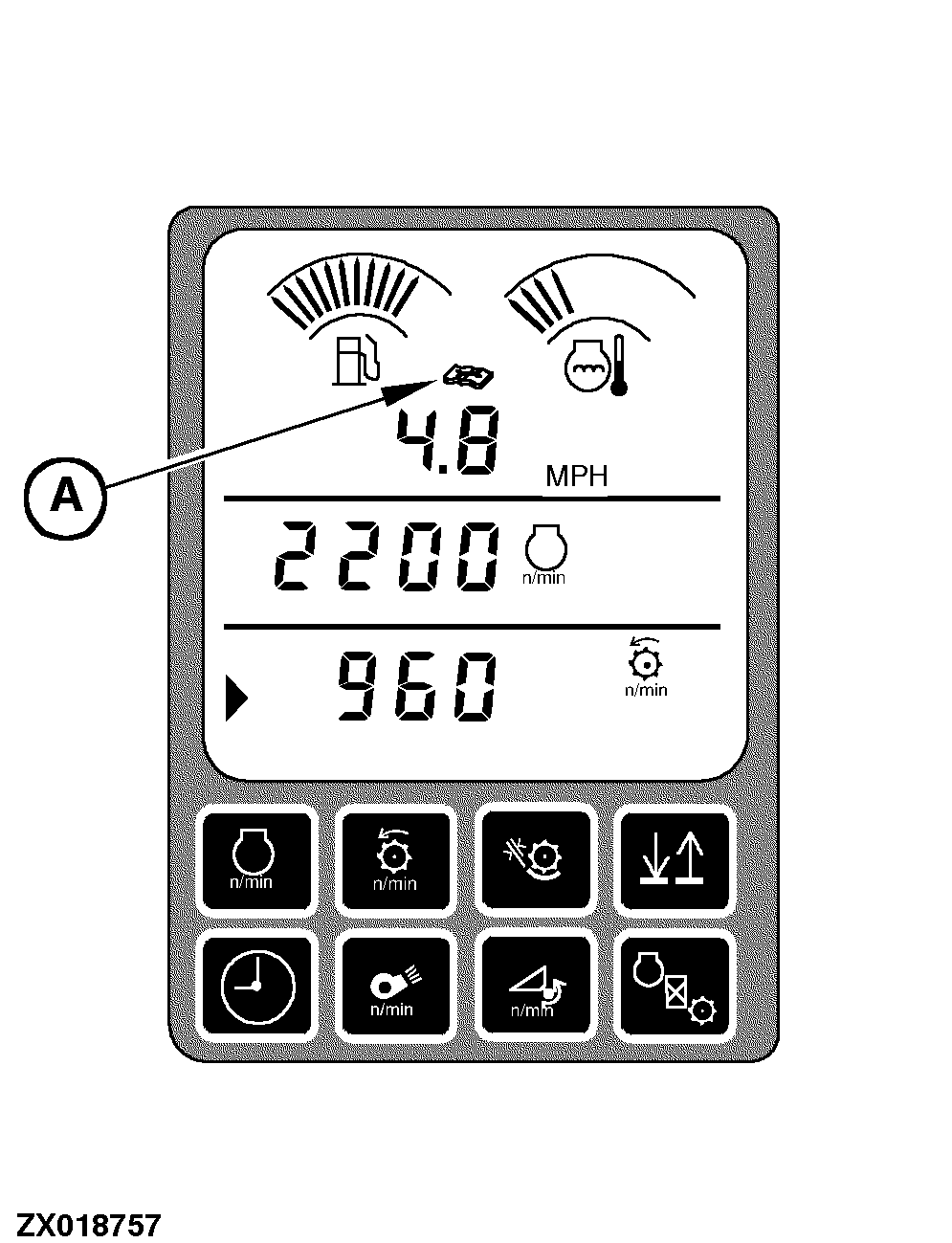

Diagnostic icon, flashing

The diagnostic icon (A) is flashing continuously. This means a diagnostic code has been generated. Stop the combine when convenient and determine the cause.

ZX018756
ZX018757

AG,OUZXMAY,172 -19-01NOV99-1/1
