Clear Service (SEU) Indicator

At the end of every 50 hours of operation, a reminder is displayed on the tachometer.

The letters SEU appear for this purpose. After performing the proper maintenance, clear the display with the following procedure.

Prepare Combine :

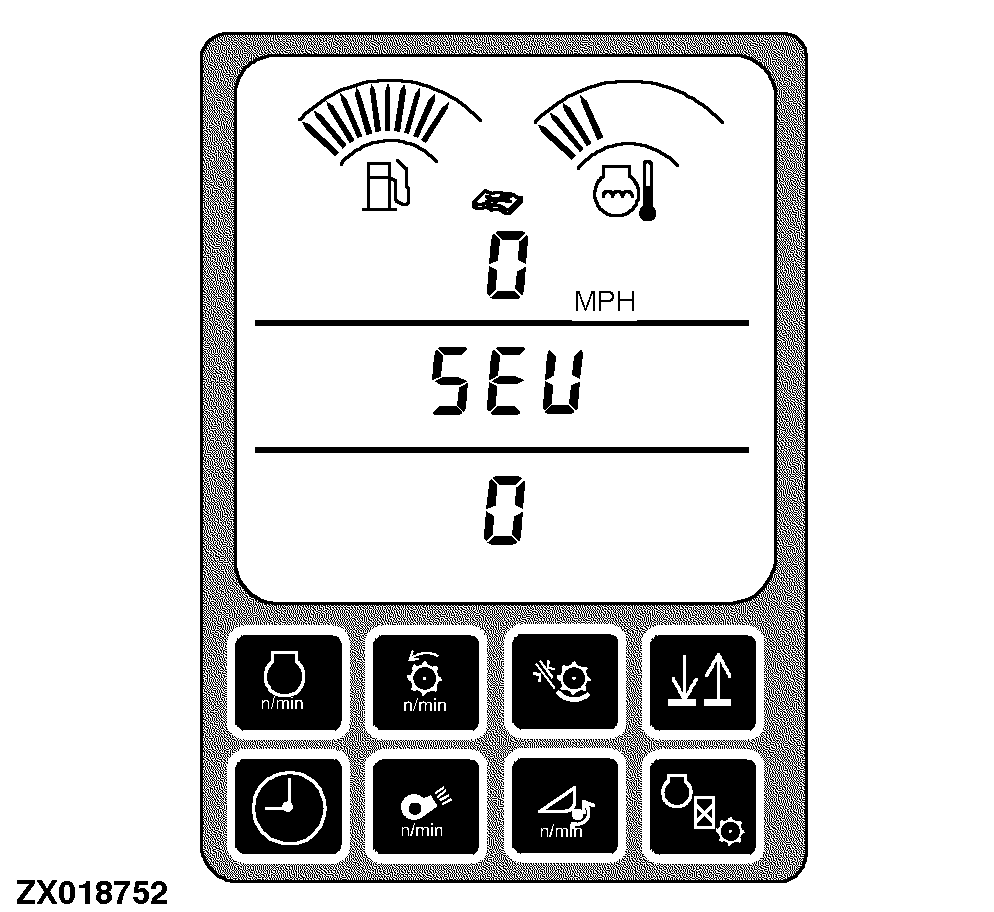

  • Turn the key switch to the run position.
ZX018752

AG,OUZXMAY,224 -19-17FEB00-1/4

Press the diagnostic switch. dIA will appear on the triple display tachometer.

ZX018729

AG,OUZXMAY,224 -19-17FEB00-2/4

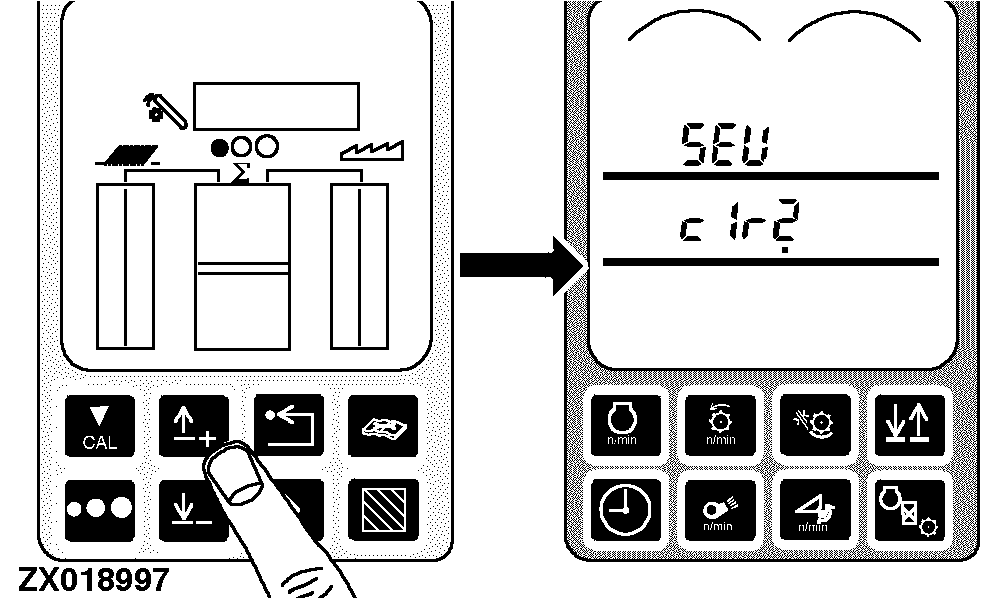

Press the up arrow switch once. SEU and clr? appear on the tachometer.

ZX018997

AG,OUZXMAY,224 -19-17FEB00-3/4

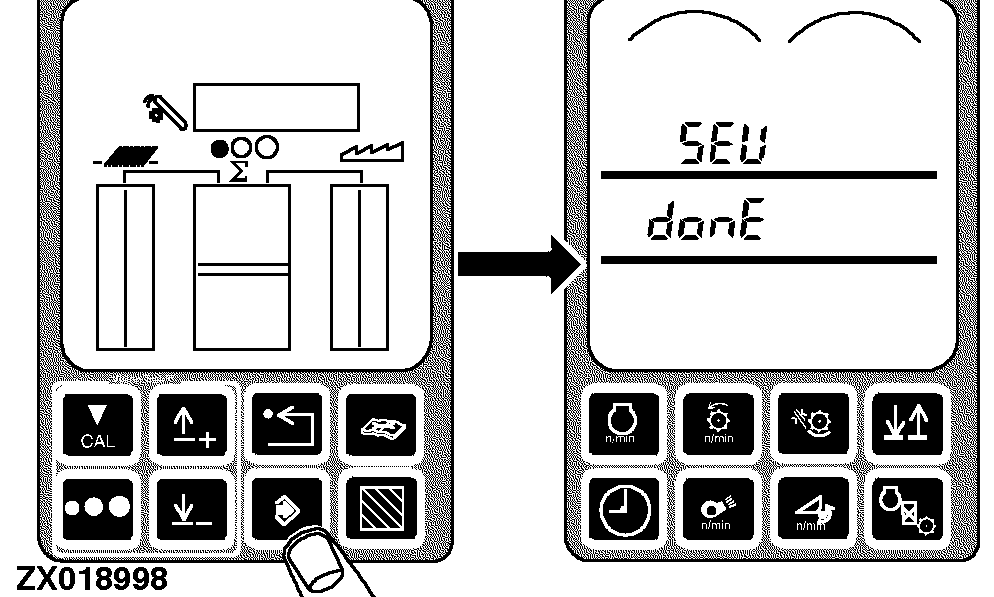

Press the enter switch to clear the service indicator. SEU and donE will appear on the tachometer.

Press back arrow switch to return to normal operation.

ZX018998

AG,OUZXMAY,224 -19-17FEB00-4/4
