Adjusting Precleaner

To adjust precleaner, use the tool provided.

Place the end of the tool into the adjustment linkage on the precleaner.

One turn of the adjusting handle equals 3 mm (0.12 in.) opening of the precleaner louvers.

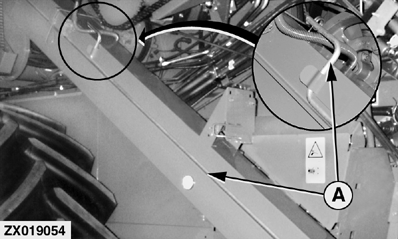

When not used, be certain tool (A) is locked in place.
