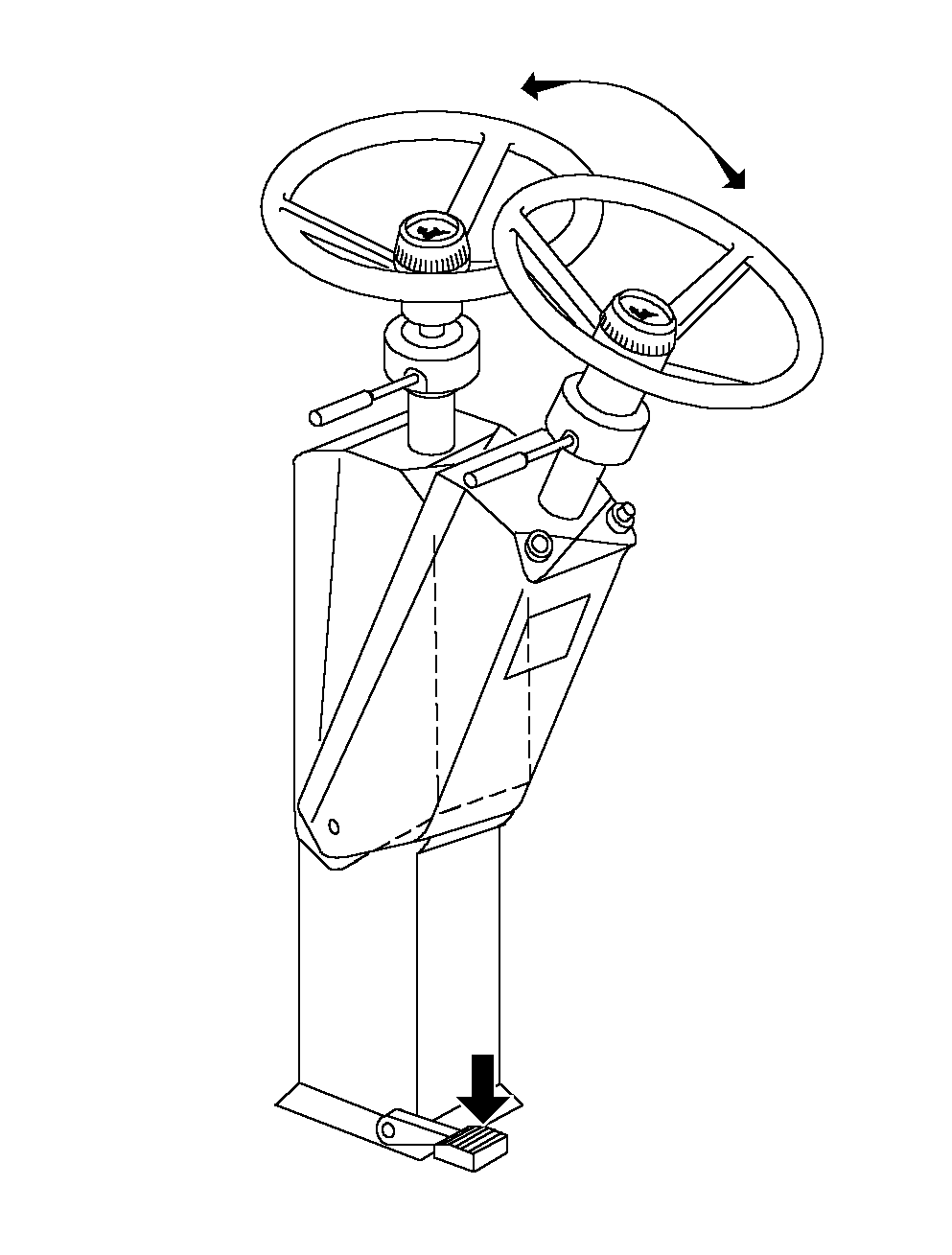

Steering Column Tilt Adjustment

CAUTION: Adjust column only when combine is stopped.

Column is spring loaded to the upright position. Do not step on pedal without holding steering wheel in both hands.

Press pedal to release lock on steering column. Put column in desired position. Column locks when pedal is released.

H01,9000OS,BX -19-05DEC02-1/1
