Adjusting Tailings Elevator Paddle Chain

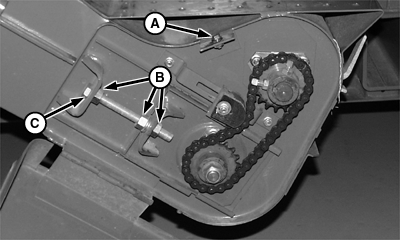

Loosen cap screw (A) and lower shield.

Loosen lock nuts (B) and adjust chain using screw (C) (both sides of elevator).

Elevator chain is adjusted properly when lower end of chain can be slid across the sprocket or can be pulled 6 mm (1/4 in.) away from the sprocket.

Specification

A-Cap screw
B-Lock nuts
C-Screw

HX,AG,SF7146 -19-19NOV02-1/1
