Removing Evaporator Filter

Clean this filter only if other service does not provide enough cooling. The evaporator filter can be inspected from outside the cab after removing the fresh air filter. If it looks clean, do not remove and clean it.

Remove five screws in seat console.

Remove six screws and evaporator cover.

Remove two nuts and cap screws (A).

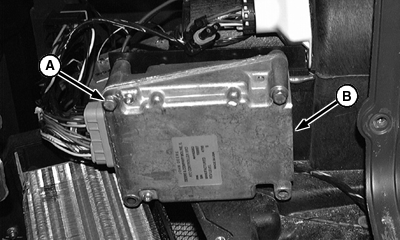

Remove control unit (B).

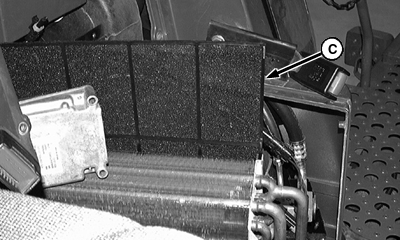

Remove evaporator filter (C).

Clean the same way as the other filters.

A-Cap screws
B-Control unit
C-Evaporator filter
