OMZ93035: 9540, 9560, 9580, 9640, 9660 and 9680 WTS Combines, Block File: OUO1035_00000CB_19

OUO1035,00000CB -19-06JUL01-1/2

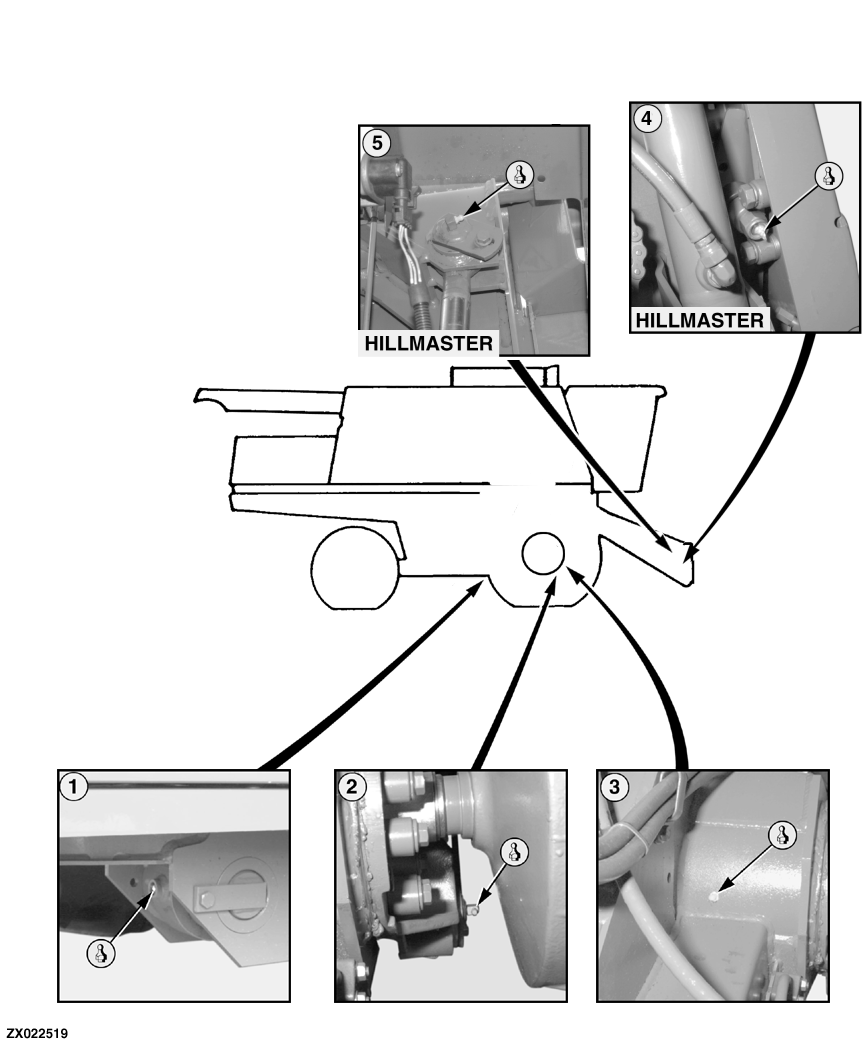

1. Leveling Cylinder Barrel - Until grease comes out (both sides).

2. Master Cylinder Piston Rod - Until grease comes out.

3. Final Drive Pivot - Until grease comes out (both sides).

4. Pivoting Front Plate Roller - Two shots of grease both sides.

5. Pivoting Front Plate Slave Cylinder Rod - Two shots of grease.

OUO1035,00000CB -19-06JUL01-2/2
