Field Area Counter Clear Calibration

Press the diagnostic switch. dIA will appear on the triple display tachometer.

ZX018729

OUO6075,0000287 -19-08DEC00-1/4

Press the calibration switch. CAL and ACF will appear on tachometer

ZX018730

OUO6075,0000287 -19-08DEC00-2/4

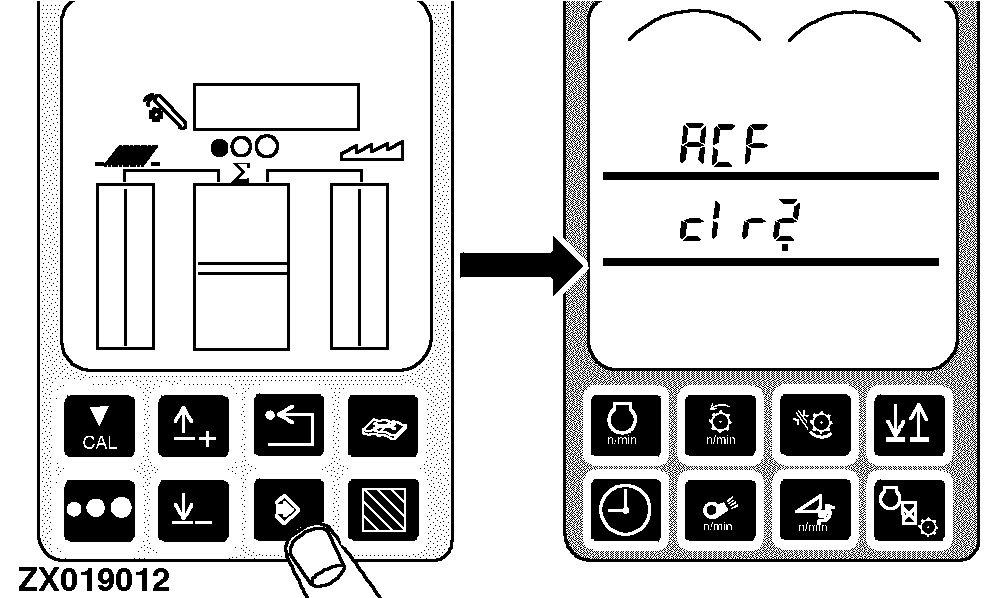

Press the enter switch. ACF and clr? will appear on tachometer.

ZX019012

OUO6075,0000287 -19-08DEC00-3/4

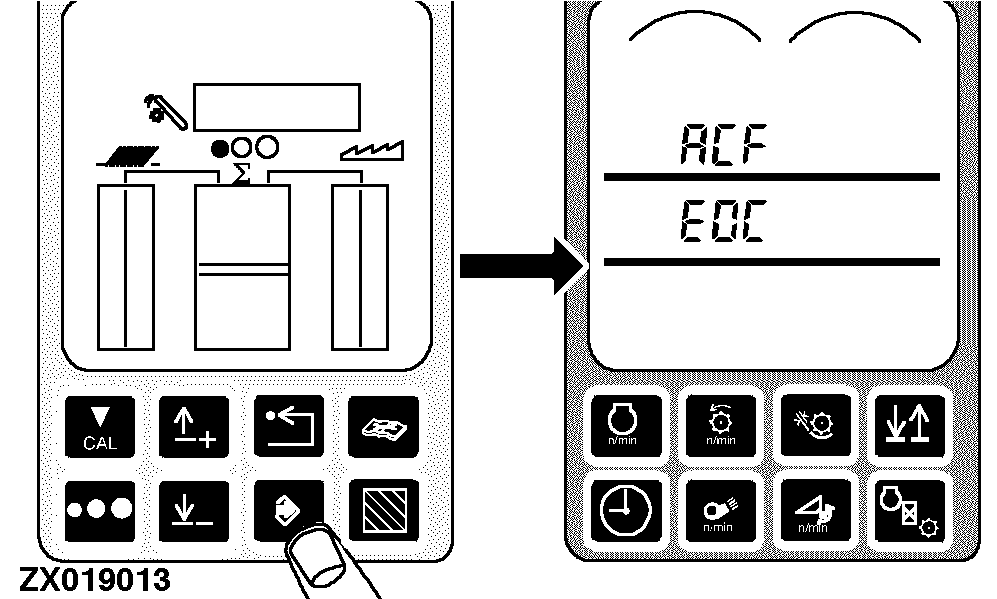

Press the enter switch to erase value and EOC will appear on tachometer for 2 seconds.

Press the back arrow switch on the VISIONTRAK monitor once to return to normal operation.

ZX019013

OUO6075,0000287 -19-08DEC00-4/4
