Field Total Area Counter Clear Calibration

Press the diagnostic switch. dIA will appear on the triple display tachometer.

OUO6075,0000288 -19-08DEC00-1/5

Press the calibration switch. CAL and ACF will appear on tachometer.

OUO6075,0000288 -19-08DEC00-2/5

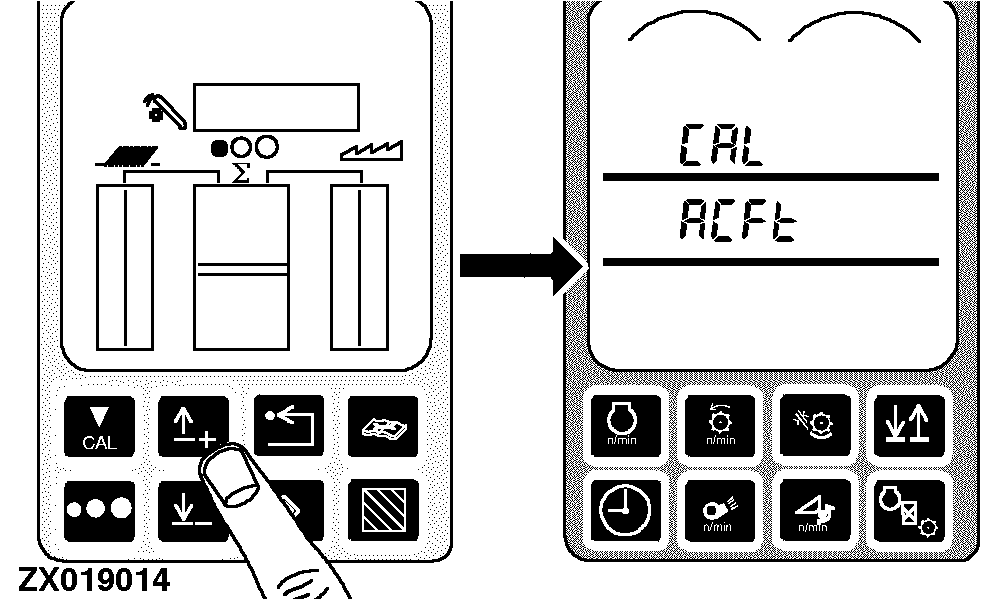

Press the up arrow switch once. ACFt will appear on the tachometer.

OUO6075,0000288 -19-08DEC00-3/5

Press the enter switch. ACFt and clr? will appear on tachometer.

OUO6075,0000288 -19-08DEC00-4/5

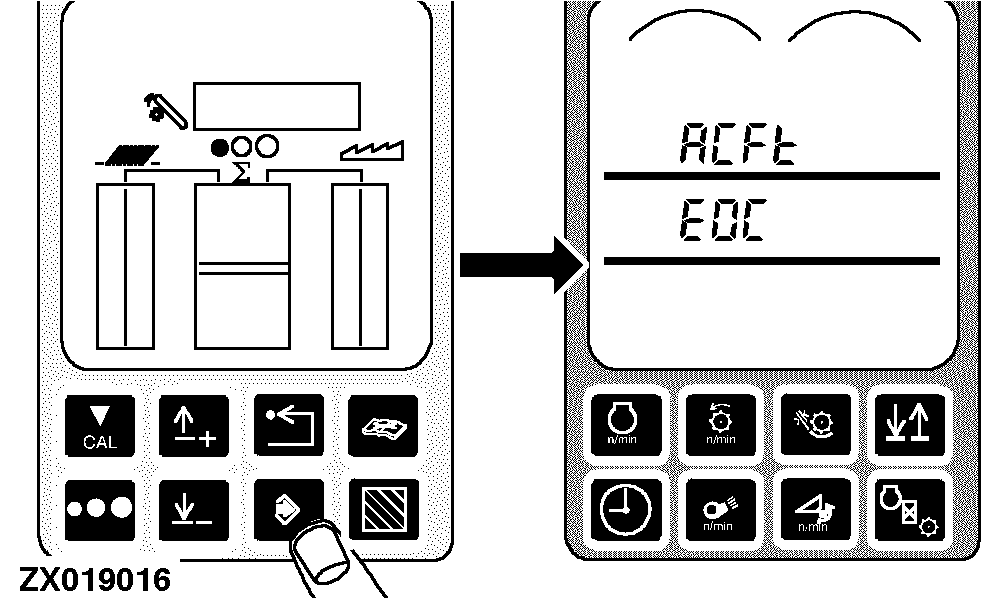

Press the enter switch to clear Field Total Area Counter. EOC appears for 2 seconds then CAL and ACFt will appear on tachometer.

Press the back arrow switch on the VISIONTRAK monitor once to return to normal operation.

NOTE: Clearing Field Total Area Counter will also clear Field Area Counter.

OUO6075,0000288 -19-08DEC00-5/5
