Adjusting Predefined Settings

NOTE: Actual adjustments of threshing speed should take less than 50 seconds. If threshing speed is not reached in the allotted time an error code will appear.

Actual adjustments of concave clearance should take less than 30 seconds. If concave clearance is not reached in the allotted time an error code will appear.

Actual adjustments of fan speed should take less than 130 seconds. If fan speed is not reached in the allotted time an error code will appear.

1. To scroll through the different crop settings push the up or down arrows (A).

2. To adjust to desired crop settings (D), the separator must be engaged, and engine at high idle.

3. Press the auto button (B).

4. Crop name (C) will be displayed as actual positions for threshing speed (E), fan speed (F), concave clearance (G) are being adjusted. The icon will flash until all positions are reached or adjusted manually.

5. Pressing the back button will stop the automatic adjustment.

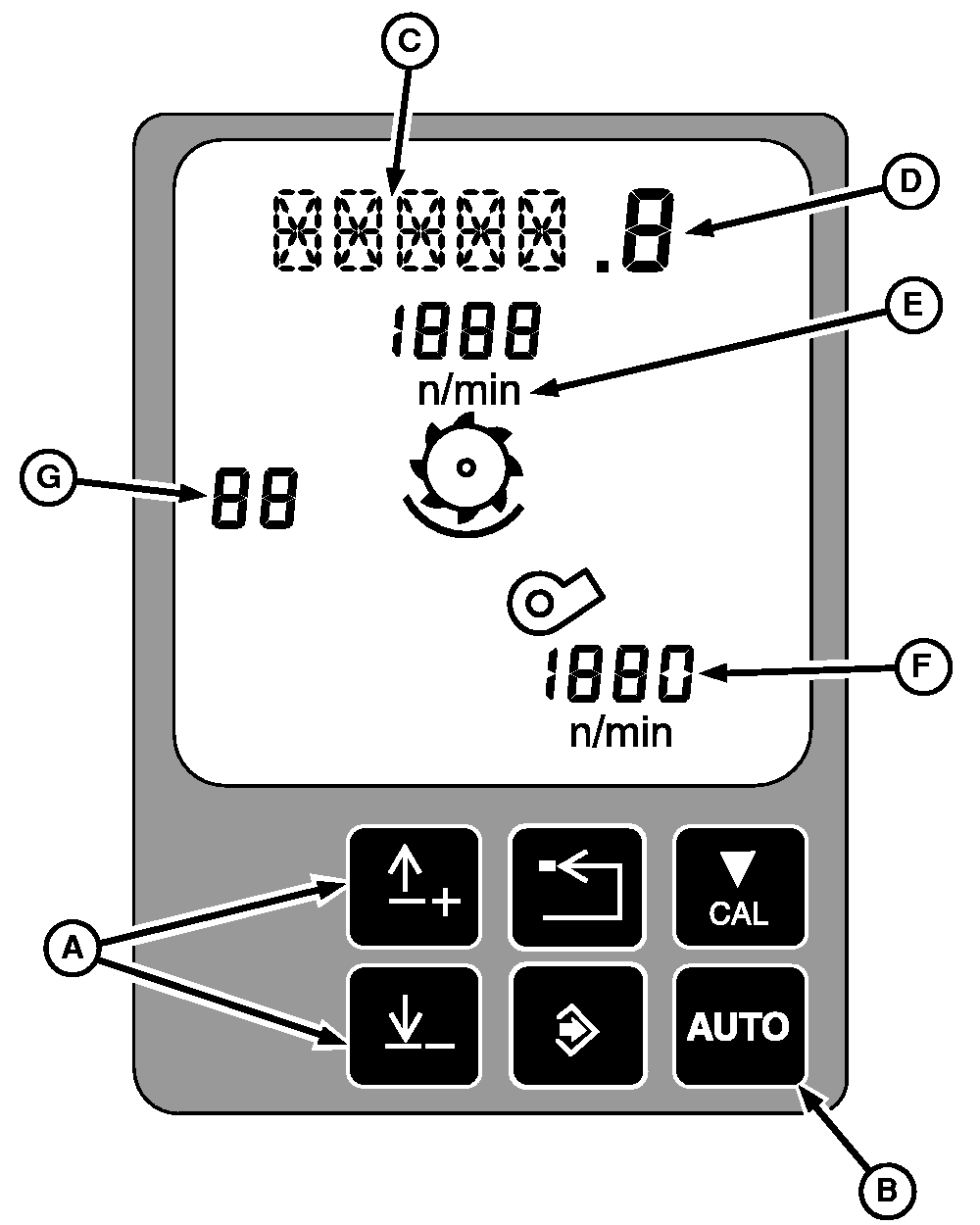

H65822


A-Up or Down Arrows
B-Auto Button
C-Crop Name
D-Crop Setting
E-Threshing Speed
F-Fan Speed
G-Concave Clearance
