Setting Personal CROP1 - CROP5 and Factory CROP2 (WHEAT 2) Settings (Manual Calibration)

NOTE: During harvest (separator engaged, header engaged, engine at high idle) the cal button must be pressed twice in consecutive order to begin manual calibration. Before harvesting pressing the cal button once will begin manual calibration.

1. Press cal button. Threshing speed (C) setting will flash.

NOTE: By holding the up or down arrow for more that four seconds the threshing speed will increase or decrease by increments of one hundred.

2. Press up or down arrow to increase or decrease threshing speed in increments of ten.

3. Press cal button. The concave clearance setting (D) will flash.

NOTE: By pressing and holding the up or down arrow for more than four seconds the concave clearance will increase or decrease by increments of ten.

4. Press up or down arrow to increase or decrease concave clearance in increments of one.

5. Press cal button. Fan speed setting (E) will flash.

NOTE: By holding the up or down arrow for more that four seconds the fan speed will increase or decrease by increments of one hundred.

NOTE: If calibrating the Factory 2 Crop settings pressing the cal button will advance to the threshing speed again, since the name cannot be changed.

6. Press up or down arrow to increase or decrease fan speed in increments of ten.

7. Press the cal button to move to the crop name settings.

8. The first character in the name will start to flash.

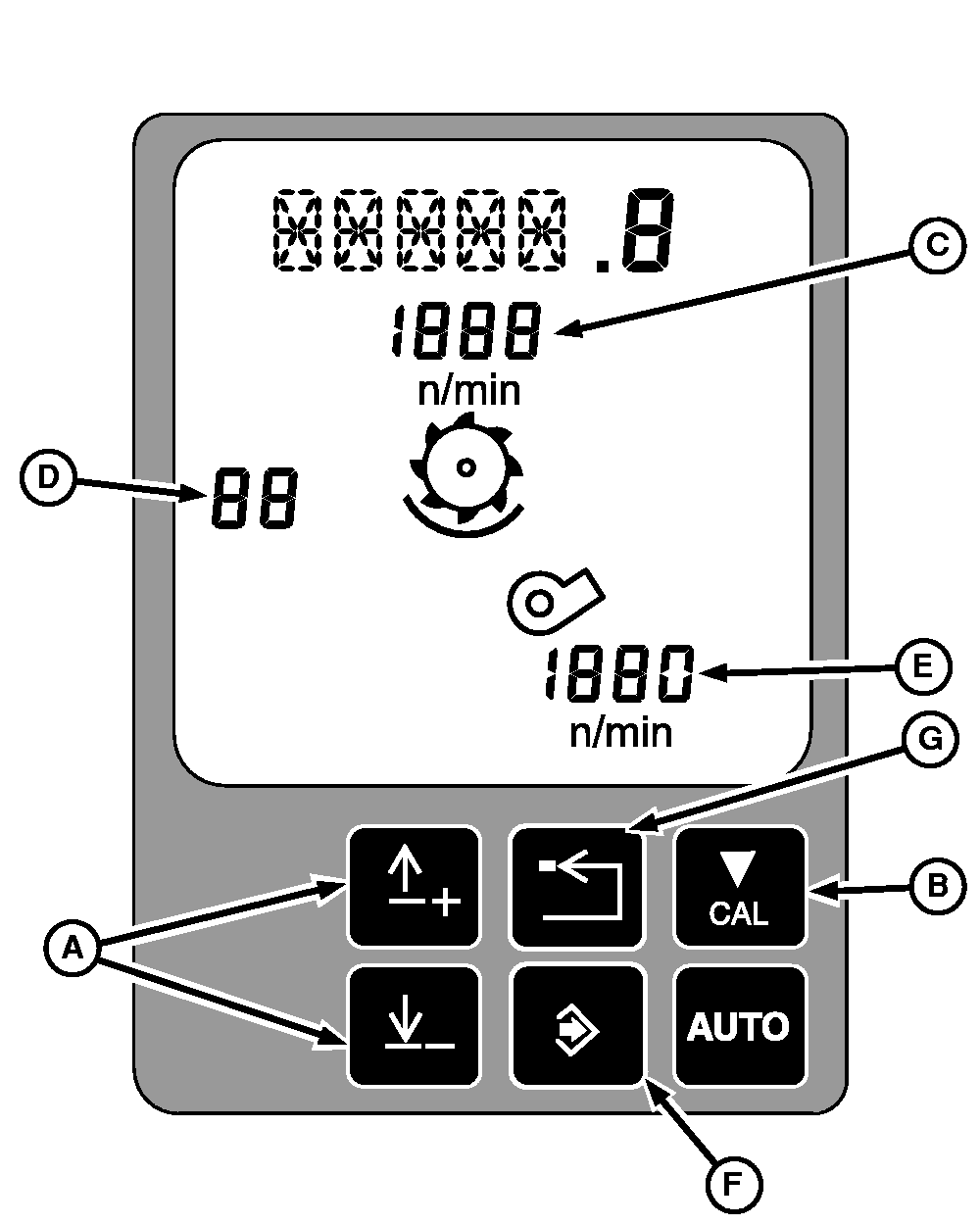

H65824


A-Up or Down Arrow
B-Calibration Button
C-Threshing Speed
D-Concave Clearance
E-Fan Speed
F-Enter Button
G-Back Button or Abort

OUO6075,0000391 -19-10JAN01-1/2

9. Use the up or down arrow (A) to change to the desired letter.

10. To advance to the next letter in the name press the cal button (B). Repeat through all the characters.

11. Press the enter button (F) to end the calibration. The text will alternate between the name and EOC.

12. Press the enter button (F) again will save the calibration.

13. Press the back button (G) to exit without saving. The text will alternate between the name and abort, and the settings are not saved
