Warning Display Panel Light Bulb Replacement

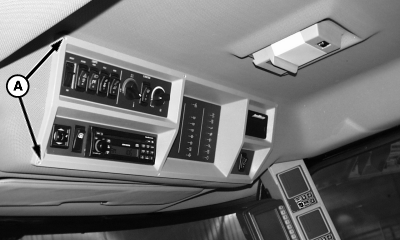

Remove six screws (A) attaching display panel and lower panel.

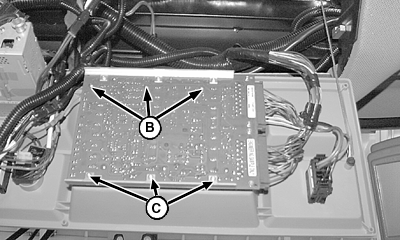

Remove screws (B), (C) and circuit board.

Remove defective bulb by pulling straight out.

Install new bulb in reverse order.

A-Screws
B-Screws
C-Screws

OUO6075,00013C1 -19-02FEB01-1/1
