CAUTION: Raise feeder house, lower safety stop, shut off engine, set parking brake and remove key.
Open front shield.

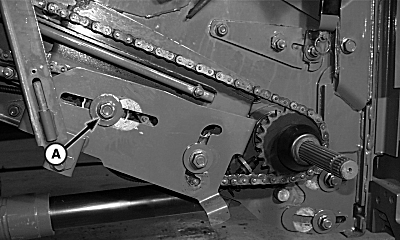

Loosen nut (A) and push sprocket rearward.
Use pry bar in holes of inside plate to move sprocket forward and tighten nut (A).
Close shield.
A-Nut
OUO6075,0001474 -19-05DEC02-1/1
CAUTION:
Raise feeder house, lower safety stop, shut off engine, set parking brake and remove key.
