Grain Tank Window/Rear Cab Window Cleaning

CAUTION: Engine must be off, key removed and parking brake set.

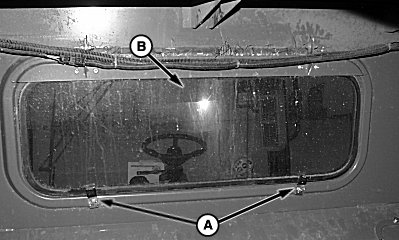

Loosen clamps (A) and swing grain tank window (B) up for cleaning.

A-Clamps
B-Grain Tank Window

OUO6075,000152A -19-21FEB01-1/1
