Adjust Swing Cylinder Eyebolt
1.

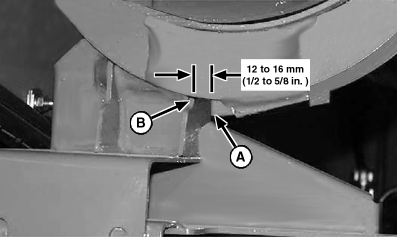

With hydraulic cylinder fully retracted, check gap between plate (A) and stop (B). The gap should be 12-16 mm (1/2-5/8 in).
Specification
|
Plate to Stop
-Gap
|
12-16 mm
|
(1/2-5/8 in)
|
A-Plate
B-Stop
|
|
|
|
OUO6075,000153A -19-22FEB01-1/2
|
|
2.

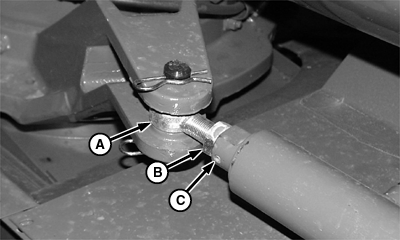

If gap is incorrect adjust cylinder rod end (A). Loosen jam nut (B) and set screw (C). Screw cylinder rod in or out to obtain correct gap.
3.
Tighten jam nut and set screw.
A-Cylinder Rod End
B-Jam Nut
C-Set Screw
|
|
|
|
