Drum Height Adjustment

causym CAUTION: Raise feeder house, lower safety stop, shut off engine, set parking brake and remove key.

1. Open right-hand feeder house side shields.

2. Pull and hold pin (A) while rotating handle (B) counter clockwise to small grain position.

3. For grain slat clearance, loosen nut (C) and (D), rotate cam (E) to get 3 mm (1/8 in.) slat clearance between slat and feeder house bottom. Repeat this procedure on left-hand side. Tighten nut (D) to specification.

Specification

Drum Adjusting Bolt -Torque 115 N·m (85 lb-ft)

4. Tighten nut (C) and place handle in desired crop position.


A-Pin
B-Drum Height Handle
C-Nut
D-Nut
E-Cam

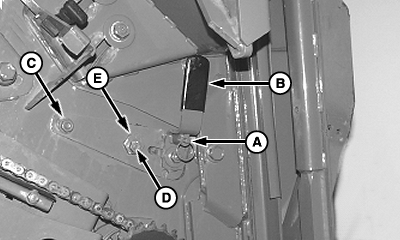

H66531

Corn Only Position

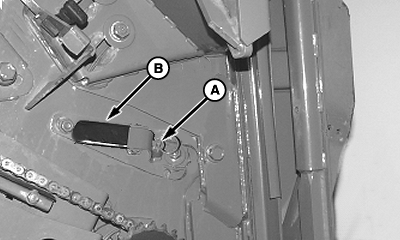

H66532

Small Grain Position
