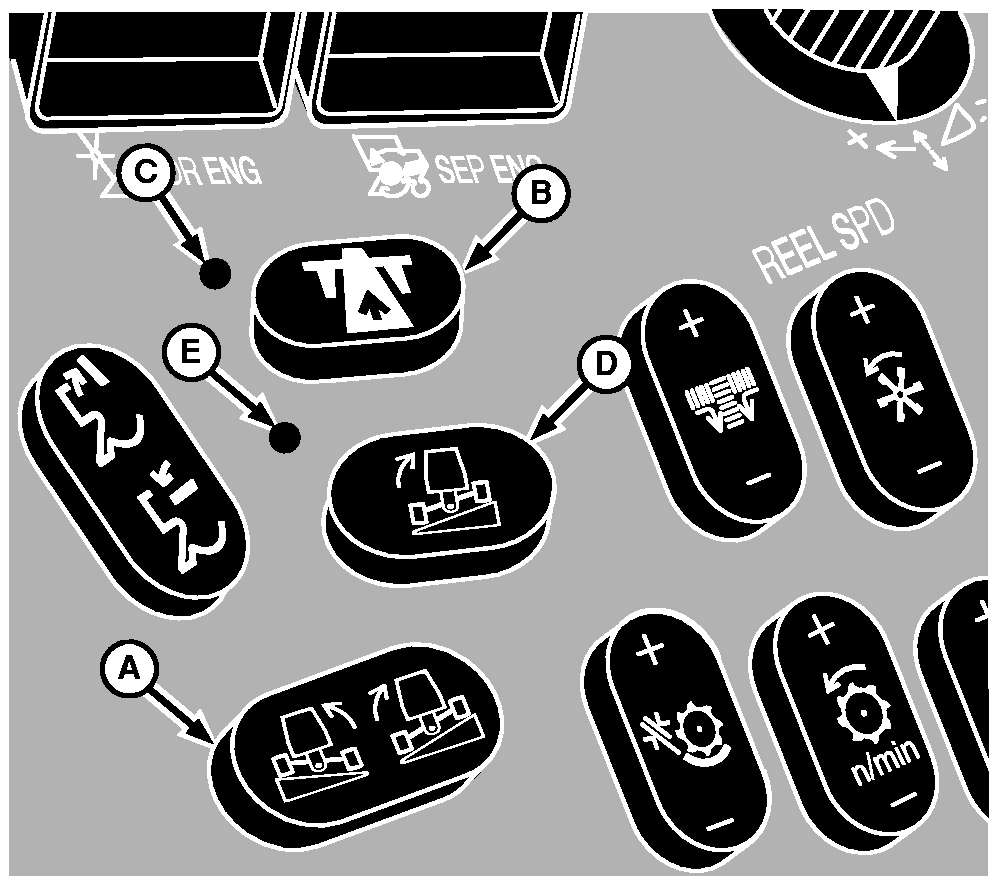

Operating With Manual Leveling Control (Optional)Use the manual leveling control switch (A) to manually tilt the combine or to place combine to the road travel position. 1. To Manually Tilt the Combine:Place road safety switch (B) in field position (the indicator light (C) will go off) and place automatic leveling control switch (D) to " OFF " position (the indicator light (E) will go off). Press manual leveling control switch (A) on the left-hand or right-hand side to tilt the machine as desired. |
|
OUO6075,0001684 -19-27APR01-1/2 |
|
2.
To Place Combine to Road Travel Position:
Place road safety switch (B) in field position (the indicator light (C) will go off). Press and hold automatic leveling control switch (D) to " ON " position (the indicator light (E) will come on). Press manual leveling control switch (A) either on the left-hand and right-hand side to lower the machine to road travel position.
|
|
OUO6075,0001684 -19-27APR01-2/2 |
