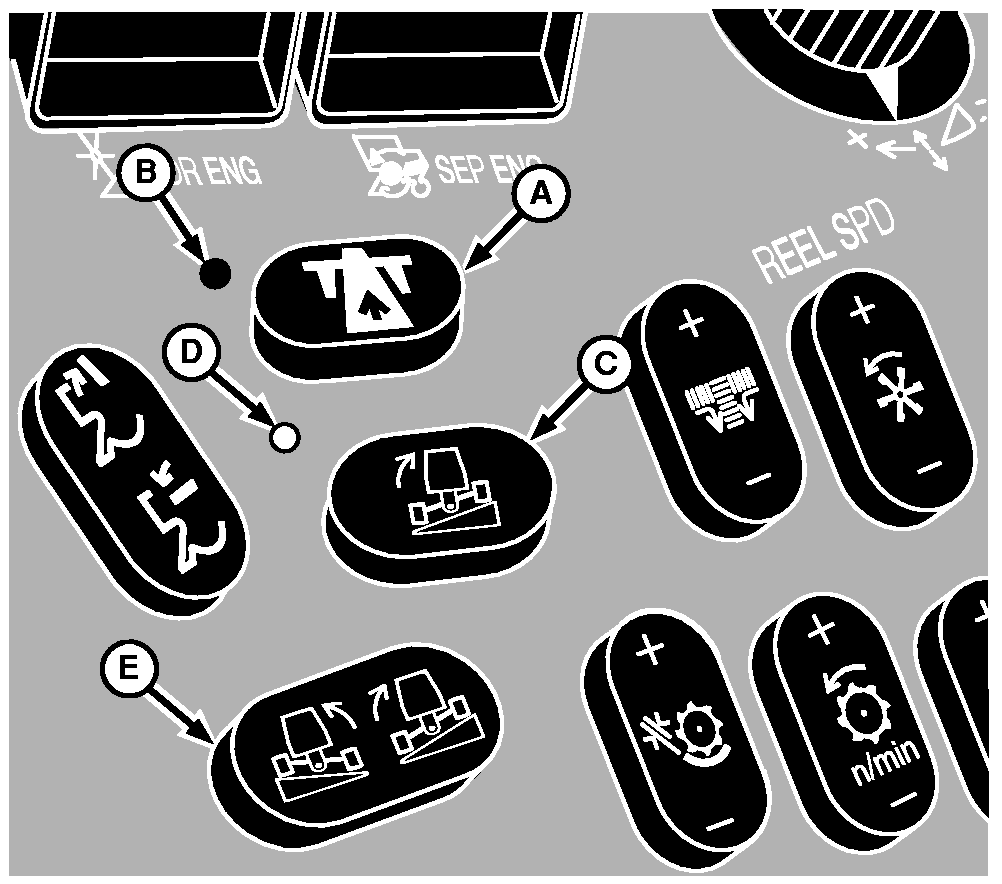

Operating With Automatic Leveling Control (Optional)When working in the field, place road safety switch (A) to field position (the indicator light (B) will go off) and place leveling control switch (C) to position for automatic operation (the indicator light (D) will come on). Press manual leveling control switch (E) alternatively on the left-hand and right-hand side to raise the machine in working position. Now the combine will automatically level on slopes up to 15%.
|
|
OUO6075,0001685 -19-27APR01-1/1 |
