Daily Preparations Before Driving HILLMASTER II Combine (Optional)

Before driving the HILLMASTER II combine, the following tests have to performed for safety reasons.

causym CAUTION: Do not attempt to operate HILLMASTER II combine unless all tests are OK! If one of the following tests failed, contact your John Deere dealer.

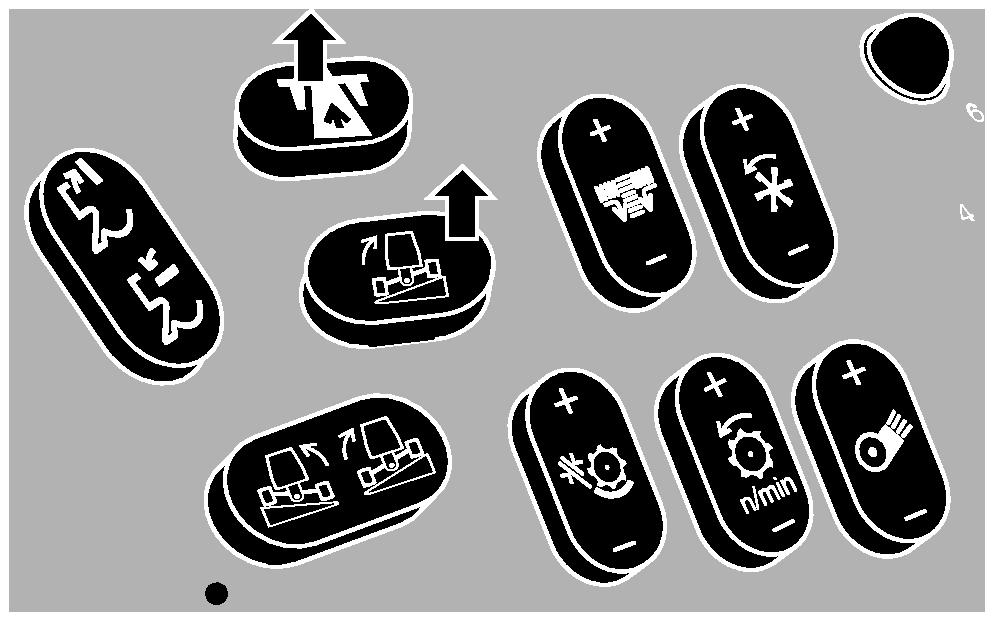

Requirements:

  • Engine running (high speed)
  • Road safety switch in field position
  • Parking brake released
  • Automatic leveling control switch in " OFF " position.
H67708

OUO6075,0001686 -19-27APR01-1/4

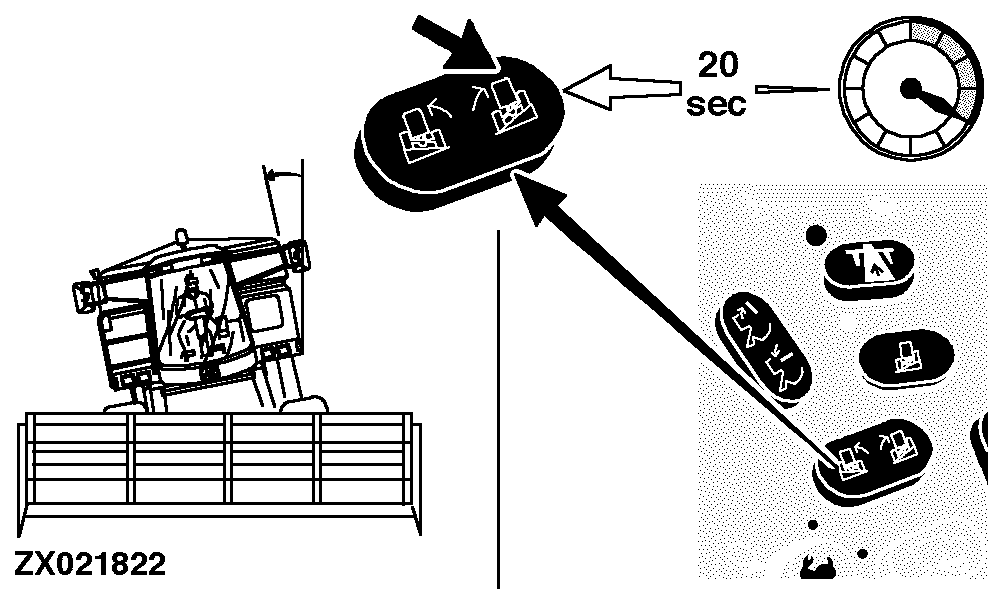

1. Test 1:

Move manual leveling control switch to right-hand tilt position for 20 seconds-combine should tilt to the right.

ZX021822

OUO6075,0001686 -19-27APR01-2/4

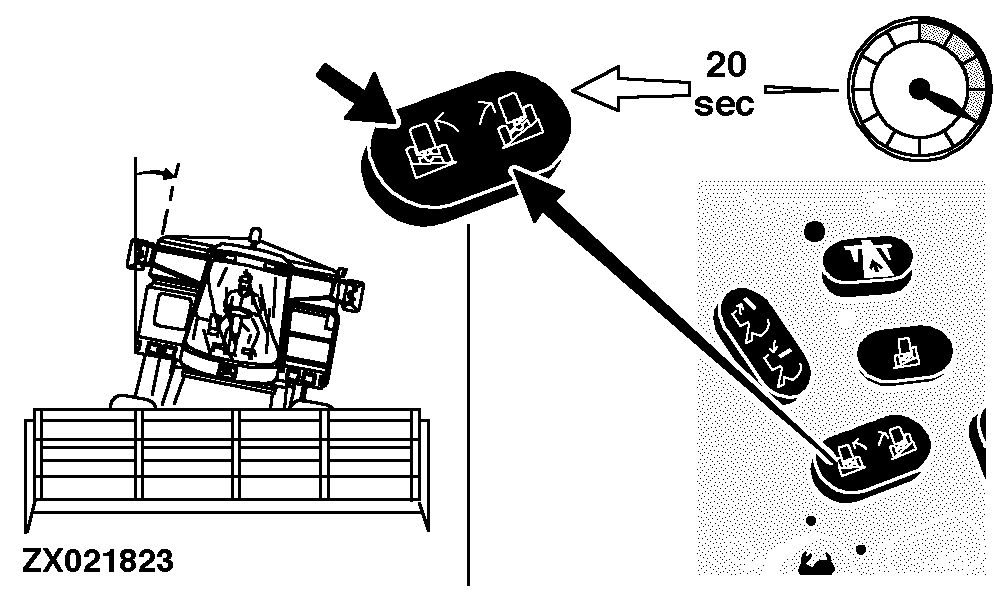

2. Test 2:

Move manual leveling control switch to left-hand tilt position for 20 seconds-combine should tilt to the left.

ZX021823

OUO6075,0001686 -19-27APR01-3/4

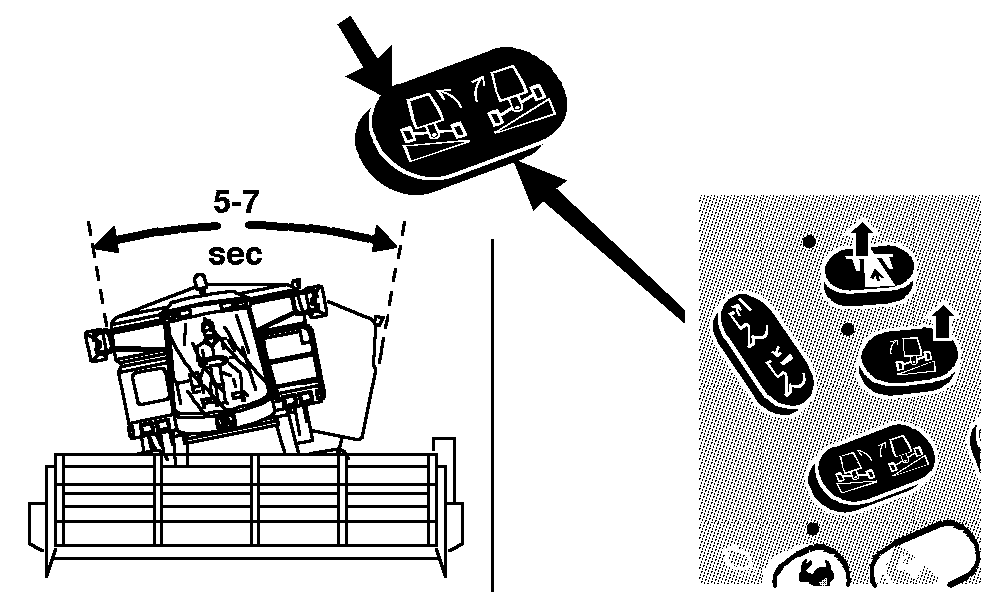

3. Test 3:

By operating manual leveling control switch, bring combine from maximum left tilt to maximum right tilt-the time required to do this should be 5-7 seconds.

H67709

OUO6075,0001686 -19-27APR01-4/4
