Removing the Chaff Spreader

CAUTION: Chaff spreader is heavy and awkward to handle. Use two service technicians or a safe lifting device to remove spreader.

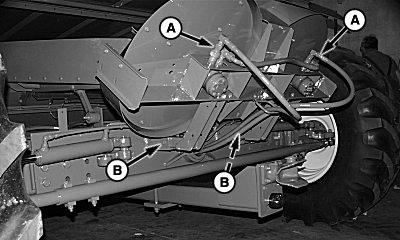

To remove the chaff spreader, disconnect the hydraulic hoses (A) from the chaff spreader.

Remove cap screws (B) securing chaff spreader to support.

Remove spreader.

A-Hydraulic Hoses
B-Cap Screws

OUO6075,00016BF -19-16MAY01-1/2

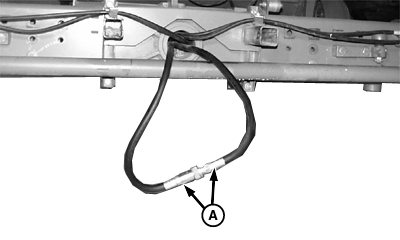

Connect hydraulic hoses (A) together. Secure hoses to support or rear axle where hoses will not get pinched when operating combine.

A-Hydraulic Hoses

OUO6075,00016BF -19-16MAY01-2/2
