OMZ93035: 9540, 9560, 9580, 9640, 9660 and 9680 WTS Combines, Block File: OUO6075_00016C1_19

Operating Grain Tank Covers

causym CAUTION: Grain tank covers must be closed before transporting combine on roads.

IMPORTANT: Open grain tank covers before engaging separator. Actuator will not raise covers if tank is one third or more full. If grain tank is full, unload before raising covers.

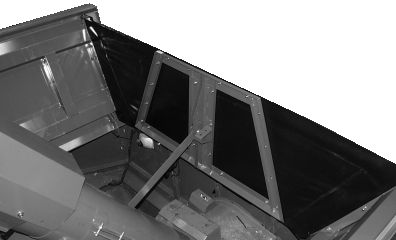

When covers are opened, the clean grain loading auger swings up with them. Auger swings down when covers are closed.

Grain tank covers are electrically operated by an electric motor activated by switches located into operator's cab and within the grain tank.

OUO6075,00016C1 -19-16MAY01-1/3

Operate Grain Tank Covers - Cab

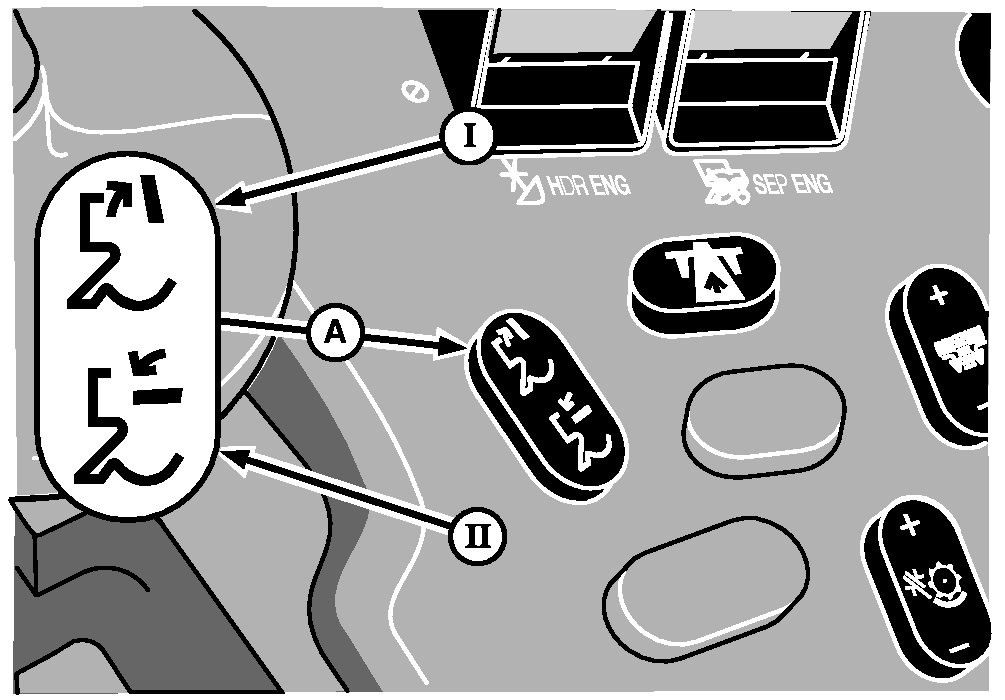

To open the grain tank covers push and hold the open-symbol (I).
To close the grain tank covers push and hold the close-symbol (II).

A-Grain Tank Cover Switch
I-Open-Symbol
II-Close-Symbol

OUO6075,00016C1 -19-16MAY01-2/3

Operate Grain Tank Covers - Grain Tank

causym CAUTION: Shut off engine, remove key, and set parking brake before entering grain tank.

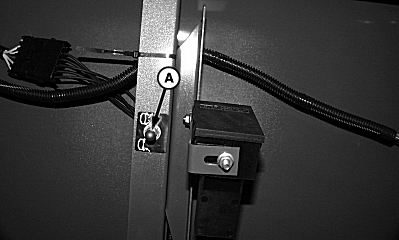

Switch (A) allows opening and closing the grain tank covers from within the grain tank. The grain tank cover switch is located on the right-hand side by the grain tank loading auger.

A-Grain Tank Cover Switch

OUO6075,00016C1 -19-16MAY01-3/3
