Replace Engine Accessory Drive Belt

causym CAUTION: Shut off engine, remove key and set parking brake.

1. Remove bolts (A) and fan (B).


A-Bolts (6 used)
B-Fan

H67316

Engine Fan Bolts

OUO6075,00016CF -19-16MAY01-1/6

2. To remove alternator belt, insert 1/2 inch drive breaker bar (A) into square hole in idler to release tension on belt.

3. Remove belt (B) from alternator.


A-13 mm (1/2 in.) Breaker Bar
B-Belt

H67317

OUO6075,00016CF -19-16MAY01-2/6

4. Remove nut (A) and loosen nut (B) to relieve spring tensioning.

5. Remove spring pin (C) and washer from tensioning rod.

6. Remove tensioning rod from hole to relieve tension.

7. Remove belt (D).


A-Nut
B-Nut
C-Spring Pin
D-Belt

H67321

OUO6075,00016CF -19-16MAY01-3/6

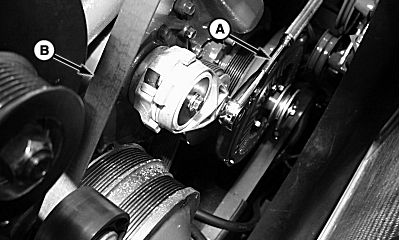

8. To remove engine accessory drive belt, insert a 1/2 inch drive breaker bar (A) into the square hole in idler to release tension on the belt.

9. Remove belt (B).

10. Install engine accessory drive belt in reverse order.


A-1/2 Inch Breaker Bar
B-Belt

H67322

OUO6075,00016CF -19-16MAY01-4/6

11. Install rotary screen drive belt (D).

12. Install tensioning rod, washer and spring pin (C).

13. Install and tighten nut (B) until gauge is at the end of spring.

14. Install and tighten nut (A).


A-Nut
B-Nut
C-Spring Pin
D-Belt

H67321

OUO6075,00016CF -19-16MAY01-5/6

15. Install fan (B) and tighten fan bolts (A) to specification.

Specification

Screws -Torque 62 N·m (45 lb-ft)


A-Bolts (6 used)
B-Fan

H67316

Engine Fan Bolts

OUO6075,00016CF -19-16MAY01-6/6
