Removing Conveyor Chain Links

First Adjustment (Approximately 500 Hrs):

Remove offset links (A) for initial chain adjustment.

Second Adjustment (Approximately 1200 Hrs):

NOTE: When replacing chain links always check sprockets for wear. To replace sprockets see procedures later in this group.

Remove inside link (B) and replace it with an offset link. Order ([3]) AH131105 (C). The offset link now becomes the coupler link.

Repeat this procedure on all strands of chain.

When adjustment is all used up from step 2 the chain is worn out and should be replaced.

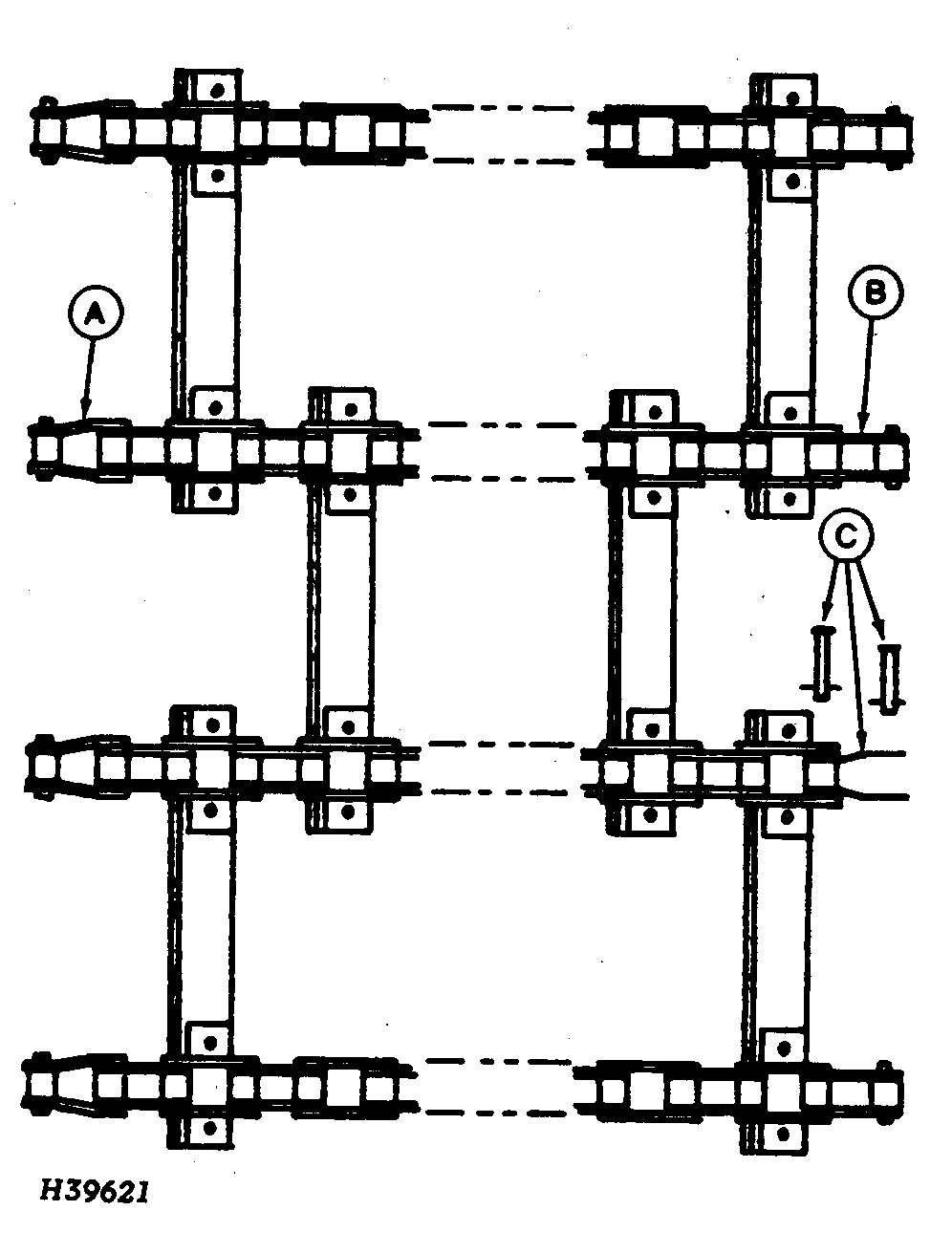

A-Offset Links
B-Inside Link
C-Offset Link AH131105
