Exit Lighting

NOTE: If dimmer switch is in lowest or highest setting, combine exiting lighting will not be activated.

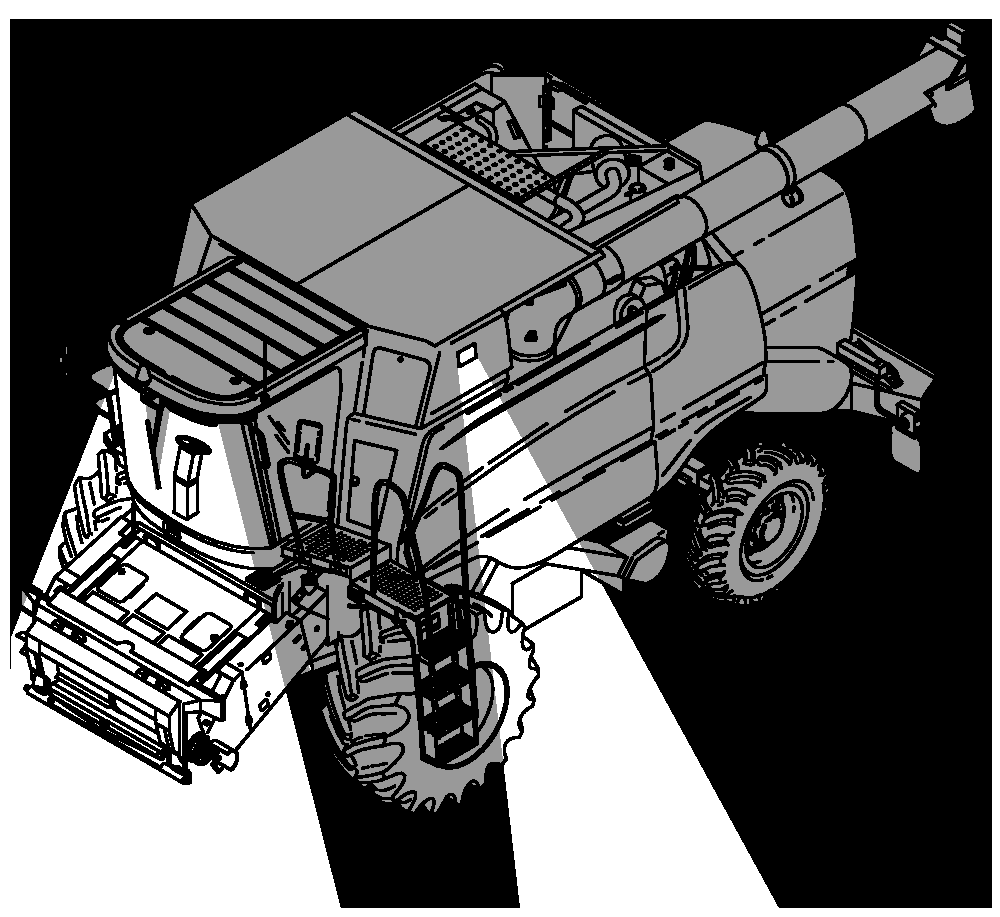

To allow the operator to exit the combine, two head lights will remain on for approximately 90 seconds after the road or field lights are turned off and the ignition key is removed.

To illuminate the sides of the combine, the left or right side finder lights can also be turned on using the turn signal lever. The light will shut-off after 90 seconds.

Exiting lighting is activated anytime when the road or field lights are used five minutes prior to turning off the ignition key.

OUO6075,0001750 -19-30MAY01-1/1
