Feeder House Top Shaft Sprockets

After 1000 hours, depending on the crops being harvested, check the upper shaft sprockets for wear.

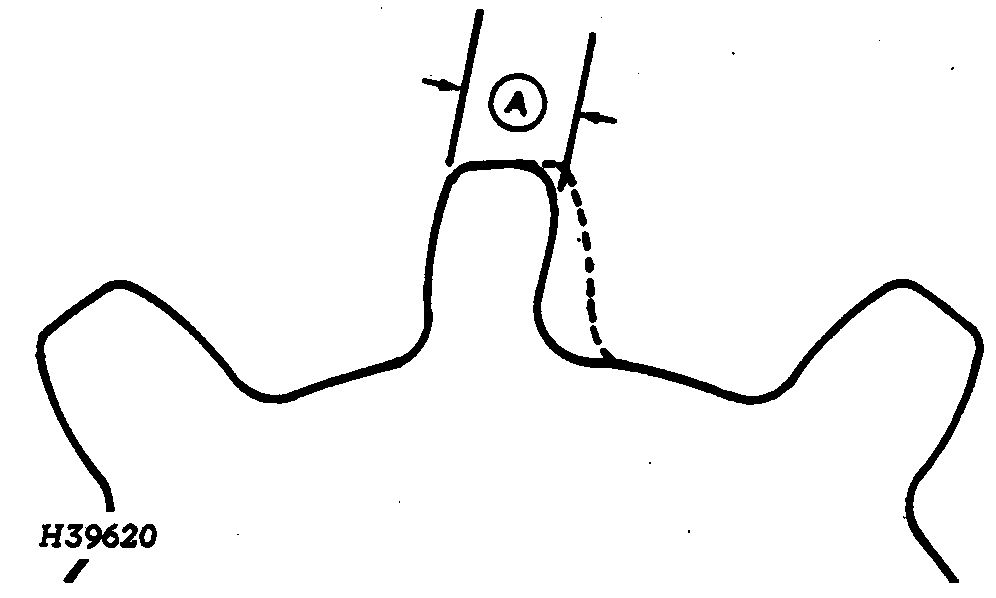

If these sprockets are worn past 12 mm (1/2 in.) (A), sprockets can be reversed for additional wear.

A-Dimension 12 mm (1/2 in.)
