Adjusting Fore/Aft Tilt Frame

causym CAUTION: Raise feeder house, lower safety stop, shut off engine, set parking brake and remove key.

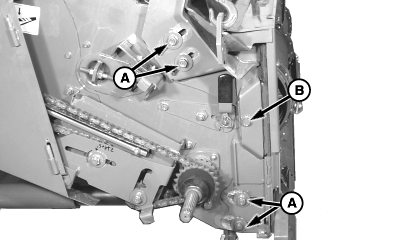

Loosen tilt frame nuts (A) and center pivot bolt (B) on both sides of the feeder house.

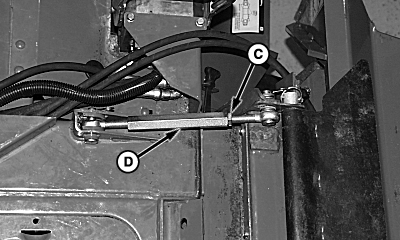

Loosen both turnbuckle stop nuts (C).

NOTE: Distance is measured from center of eyebolt to center of eyebolt.

Adjust turnbuckle (D) to specification.

Specification

Turnbuckle -Distance 315 mm (12 in.)
Tighten frame nuts and pivot bolts to specification.

Specification

Frame Nuts and Pivot Bolts -Torque 215 N·m (159 lb-ft)

H66452
H66456


A-Tilt Frame Nuts
B-Pivot Bolts
C-Turnbuckle Stop Nuts
D-Turnbuckle

OUO6075,0001804 -19-15JUN01-1/1
