Adjusting Chopper Vanes (Electrical)

NOTE: If vanes do not produce adequate spread width or even distribution, adjustments can be made to the linkage components.

If the wind is blowing from the side, set chopper vanes against the wind to prevent the standing crop from becoming covered with chopped material. This setting can be retained if the combine drives around the field in a circle and not up and down its length.

Electrical Adjustment

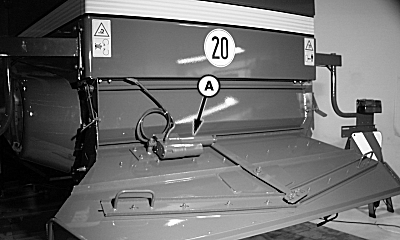

Straw deflector vanes are adjusted centrally by means of electric motor (A). The adjustment is made from the operator's cab.

A-Electric Motor
