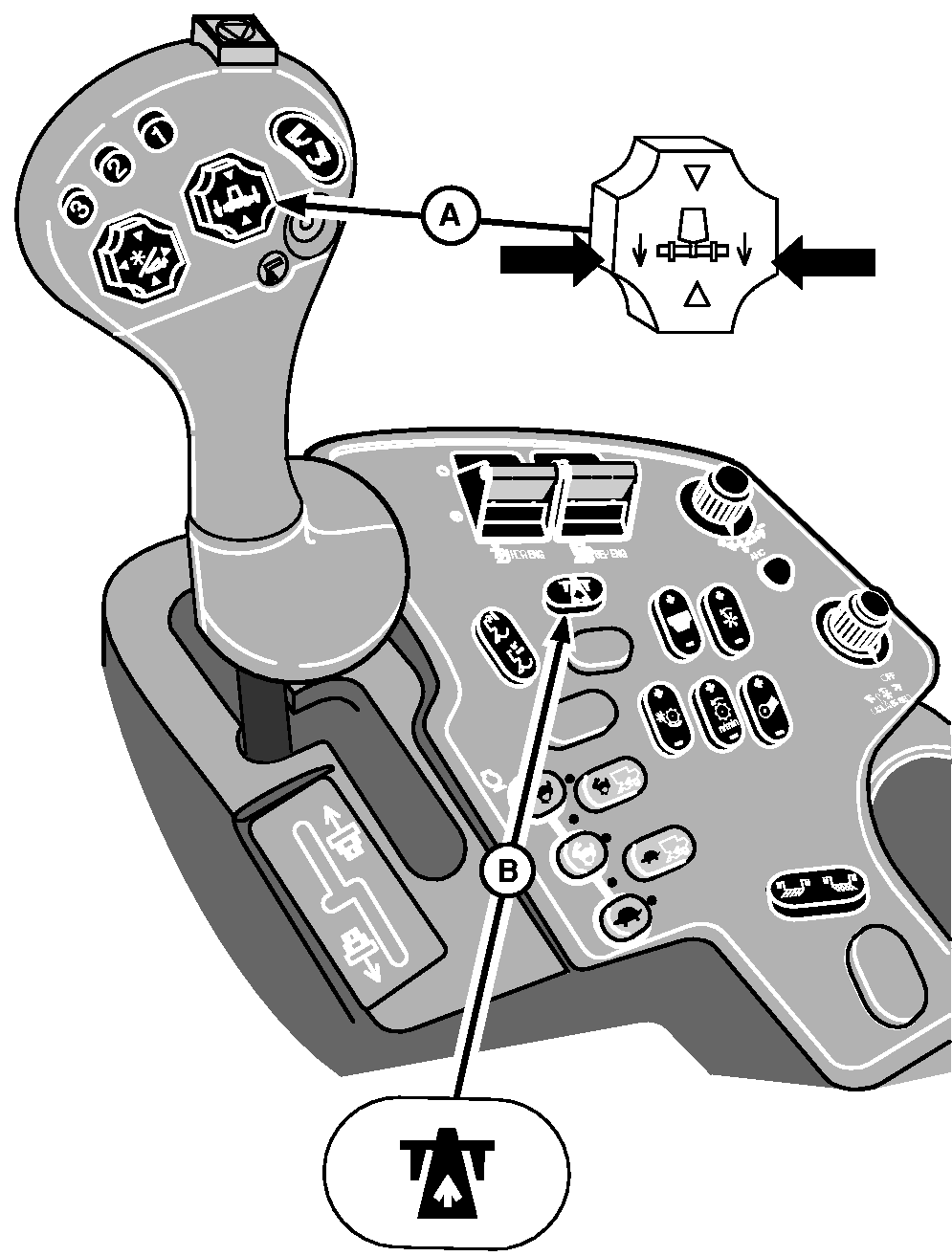

Lateral Tilt Switch (Black)To manually operate lateral tilt switch (A), the road transport disconnect switch (B) must be in field position. Press right side of switch to tilt right side of header down. Push left side of switch to tilt left side of header down.
|
|
OUO6075,00018CE -19-28JUN01-1/1 |
