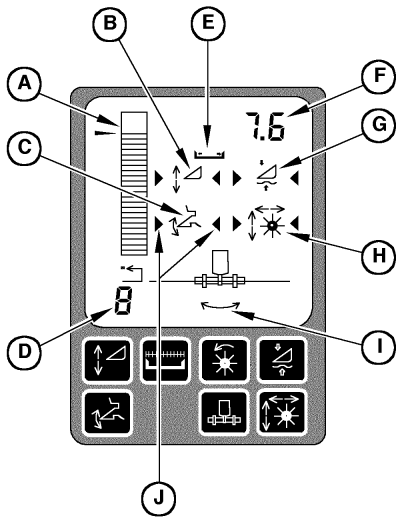

HEADERTRAK Control Display
-
A
indicates the header height or pressure relative to the ground
-
B
appears if stubble height mode is enabled
-
C
appears if return to cut mode is enabled
-
D
indicates which activation button is pressed
-
E
indicates the full or part of header width
-
F
shows the header position relative to the ground or header lift pressure, shows reel speed ratio (when adjusted) and shows header width or number of rows (when adjusted). (For cutting platforms units are meters for metric system and feet for English system)
-
G
appears if ground pressure mode is enabled
-
H
appears if reel resume mode is enabled
-
I
appears if HEADERTRAK mode is enabled
-
J
appears if any mode is activated
Only one mode can be activated, Stubble Height Control (B), Return to Cut (C) or Ground Pressure (G) is indicated by arrows.
If any of the above modes is activated, reel resume and lateral tilt will be activated too, if enabled.
|
A-Header Height or Pressure Bar Graph Indicator
B-Stubble Height Control Icon
C-Return to Cut Icon
D-Activation Button 1, 2 or 3 Display
E-Header Width Icon
F-Header Width
G-Ground Pressure Icon
H-Reel Position Icon
I-Header Tilt Angle
J-Arrows
|
