Return To Cut

Return to Cut control allows the operator to select the position of the feeder house in relation to the combine and return to that position automatically.

The system must be calibrated for each header that is used with the combine, (see Calibration Procedures section).

Activation buttons 1, 2 and 3 located on the multi-function lever can be used for selecting three different header heights.

NOTE: If both Return to Cut and Stubble Height Control are enabled, activation button 1 will activate Return to Cut. Activation buttons 2 and 3 will be assigned to Stubble Height Control.

The Return to Cut control is controlled via the feeder house height potentiometer when in the range above
250 mm (9.84 in.).

Operation:

The Return to Cut mode can be activated only when:

1. A properly equipped header is connected to the combine.
2. The engine is running.
3. The road safety switch is in the field position.
4. Return to Cut mode is enabled.
5. The header engage switch is engaged.


1-Activation Button
2-Activation Button
3-Activation Button

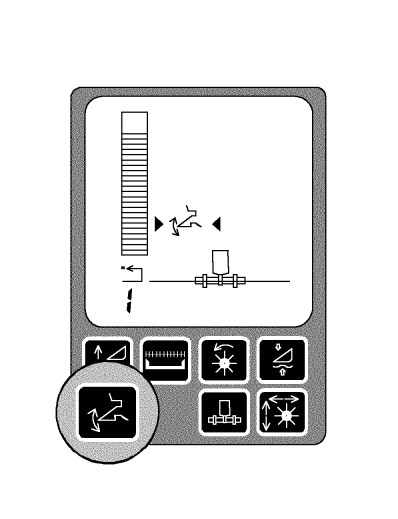

H68457
H68443

OUO6075,00018D8 -19-28JUN01-1/2

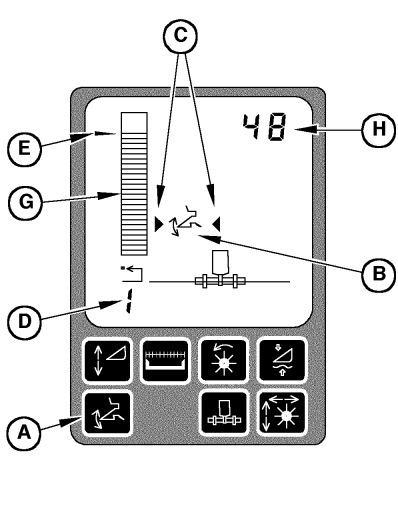

The system is enabled by pressing switch (A) on the corner post display unit. Symbol (B) will appear on the display.

Activate the system by pressing one of the activation buttons 1, 2 or 3 on the multi-function lever. Arrows (C) on each side of the symbol indicate that the system is active.

The number (D) in the lower left corner of the display indicates which activation button was pushed.

To change the height setpoint (E) of any of the activation buttons, press the desired button and adjust the height using the header height and ground pressure knob (F) to move the height setpoint.

Turning the knob towards the (+) symbol will raise the header. Turning the knob towards the (-) symbol will lower the header.

Bar graph (G) and number display (H) show the relative position of the header, based on the Return to Cut sensor linked to the feeder house.

Manually adjusting the header height with switch (I) on the multi-function lever will deactivate the system.

Pressing any of the activation buttons will re-activate the system and the header will move to the pre-selected height.

The system can be disabled by pressing switch (A).


A-Return to Cut Switch
B-Return to Cut Symbol
C-Indicator Arrows
D-Number
E-Height Setpoint
F-Header Height and Ground Pressure Knob
G-Bar Graph
H-Number
I-Header Raise/Lower Switch

H68458
H68456

OUO6075,00018D8 -19-28JUN01-2/2
