VISIONTRAK™ Display Module

The VISIONTRAK ™ display module allows the operator to do desired calibrations and setups for the grain loss monitor.

The module will display total grain loss as well as shoe and separator loss individually. The system will also display tailings volume and adjustable deck plate position (if equipped with this option).

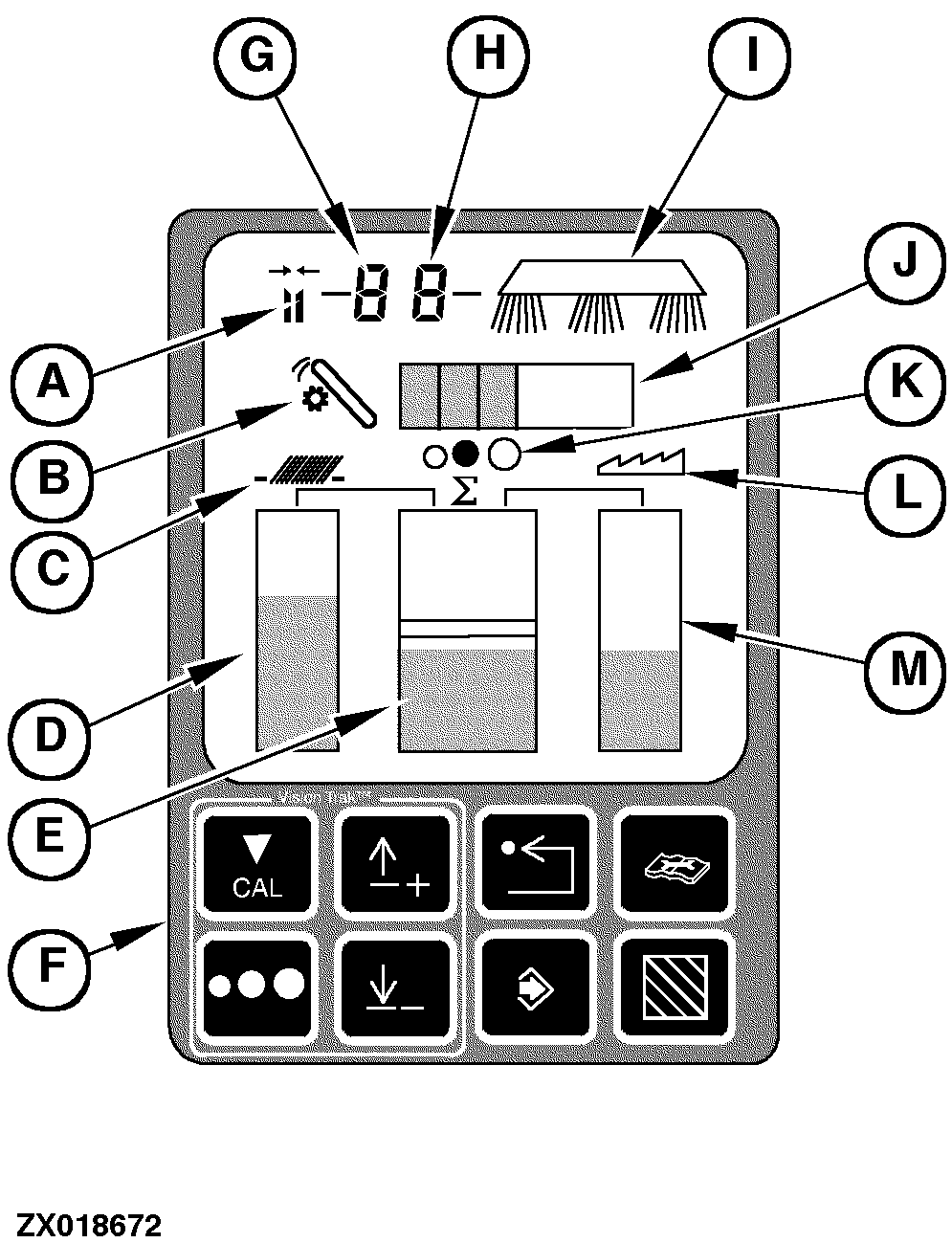

A-Adjustable Deck Plate Position (Optional)
B-Tailings Volume Display Icon
C-Shoe Icon
D-Shoe Loss Display
E-Total Loss Display
F-Control Keys
G-Deck Plate Position (Optional)
H-Chopper Deflector Vane Position
I-Adjustable Chopper Deflector Vane Position
J-Tailings Volume Display
K-Seed Size
L-Separator Icon
M-Separator Loss Display
