Adjustable Deck Plate Position (Optional)

NOTE: To calibrate adjustable deck plates, (see Calibration Procedures section).

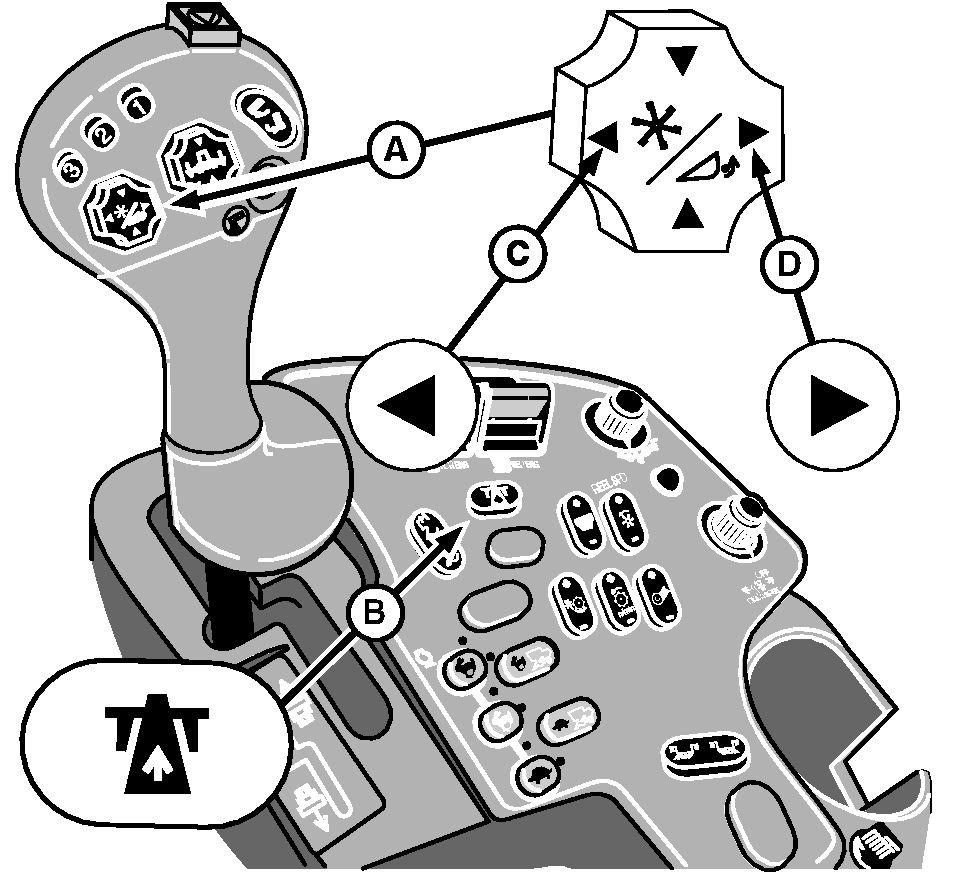

The reel fore/aft switch (A) on the multi-function lever allows the operator to open and close the adjustable deck plates on corn heads (if equipped).

The deck plates can be moved only when:

  • Engine is running,
  • Road safety switch (B) is in the field position

Pressing the reel forward switch (C) opens the deck plates and pressing the reel aft switch (D) closes the deck plates.

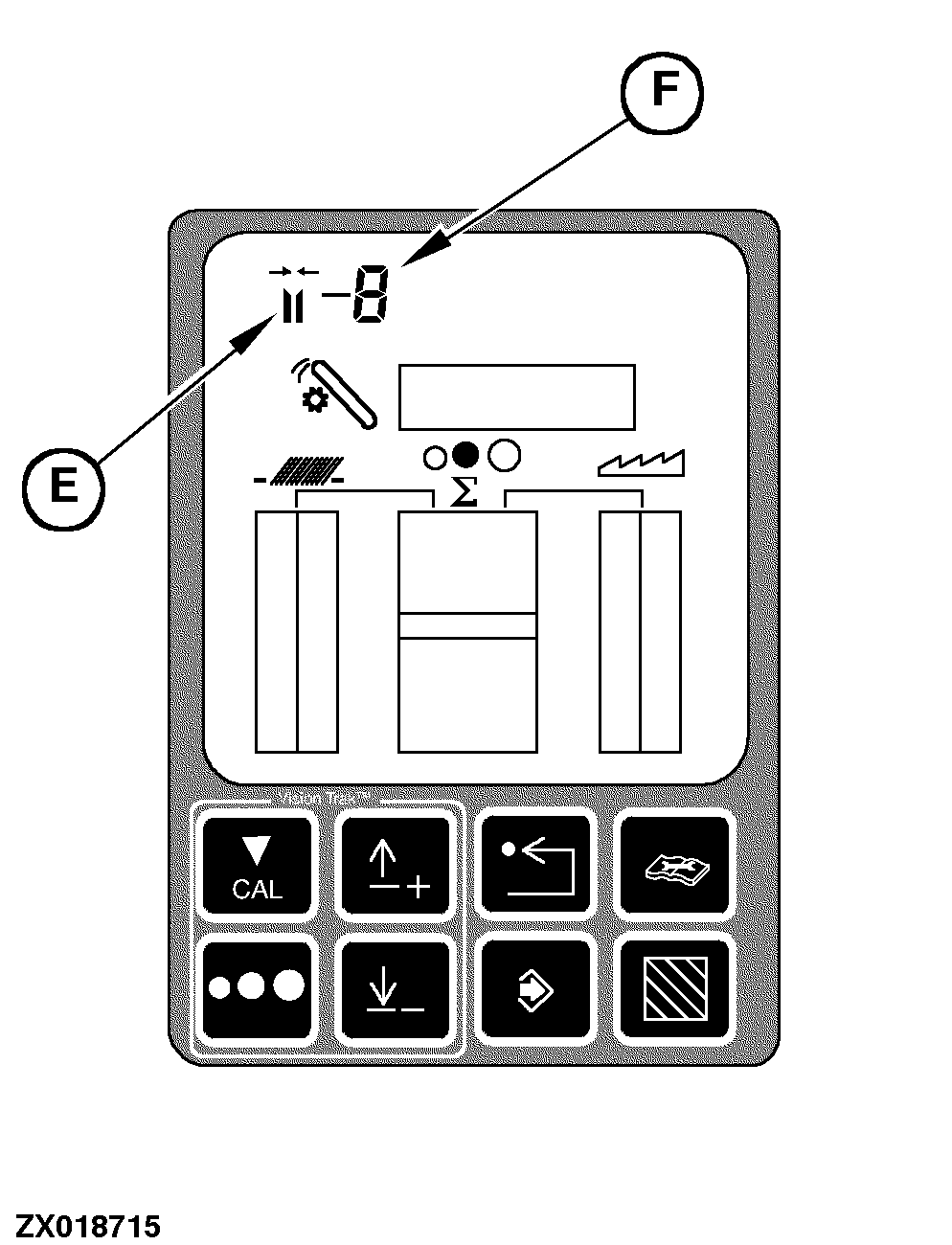

The deck plate position icon (E) and plate opening (F) (a decimal value between 0 and 9) will be displayed in the upper left-hand side of the display. Zero will be displayed with the deck plates at minimum position and 9 will be displayed with the deck plates opened to maximum position.


A-Reel Fore/Aft Switch
B-Road Safety Switch
C-Reel Forward Switch
D-Reel Aft Switch
E-Deck Plate Position Icon
F-Deck Plate Opening

H68472
ZX018715

OUO6075,00018E0 -19-28JUN01-1/1
