OMZ93035: 9540, 9560, 9580, 9640, 9660 and 9680 WTS Combines, Block File: OUO6075_000192E_19

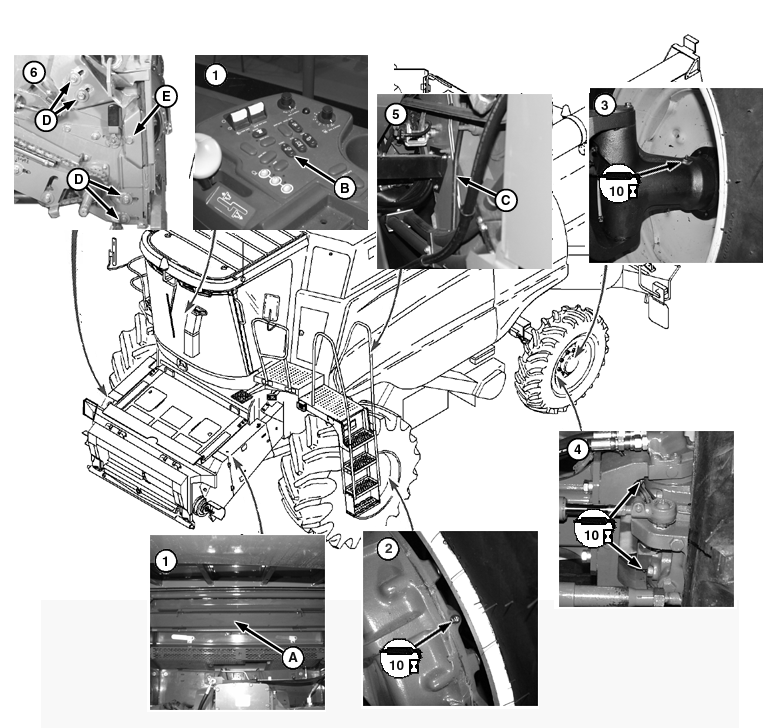

A-Stone Trap
B-Concave Control Switch

C-A/C Drain Hose

D-Pivot Bolts

E-Pivot Bolts

1. At the end of each day, dump stone trap (A) and run concave (B) up and down to prevent crop buildup in concave area.

IMPORTANT: Pump two shots of grease into each fitting. Do not over grease.

2. Final Drive Outer Bearings (Both Sides)- When operating in mud and water, grease at 10 hours. In normal conditions, grease at 50 hours.

3. Rear Wheel Hubs (Both Sides)- When working in water and mud, grease at 10 hours. In normal conditions, grease at 50 hours.

OUO6075,000192E -19-03JUL01-1/2

NOTE: When operating in mud and water grease rear axle spindle bearings and motor pivots at 10 hours. In normal conditions grease at 50 hours.

4. Motor Pivots 2-Speed 4-Wheel Drive (both sides). Lube two fittings.

5. Air Conditioning Drain Hose. Clean air conditioning drain hose (C).

6. Tighten feeder house pivot bolts (D and E) to specification. See "Adjusting Fore/Aft Tilt Frame" in the Feeder House section.

OUO6075,000192E -19-03JUL01-2/2
