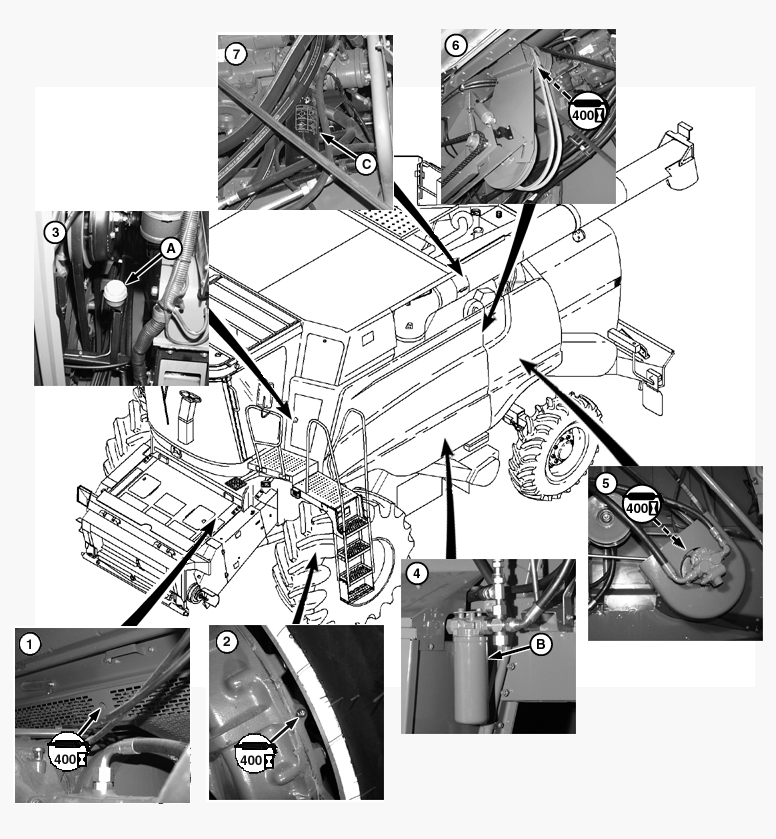

400 Hours or Yearly
|
|
1.
Conveyor Auger Drive Bearings-Two fittings.
2. Final Drive Outer Bearings (Both Sides)- When operating in mud and water, grease at 10 hours. |
3. Brake Fluid Level (A). Look through cap. Add brake fluid to 6 mm (1/4 in.) from top. Do not let dirt get into brake fluid. |
OUO6075,000193D -19-03JUL01-1/2 |
|
4.
Main Hydraulic/Hydrostatic Filter (B). It is not necessary to drain the reservoir to change this filter. Coat seal on new filter with oil . Hand tighten then tighten 1/2 turn more.
5. Straw Chopper Drive Countershaft Bearings. |
6. Straw Chopper Drive Sheave. 7. Hydrostatic Charge Filter (C)- Coat seal on new filter with oil. Hand tighten then tighten 1/2 turn more. |
OUO6075,000193D -19-03JUL01-2/2 |
