Raising and Lowering Chopper Vane Board

NOTE: Chopper vane board can be adjusted to three different positions by pulling out knob (A) and lifting or lowering chopper vane board.

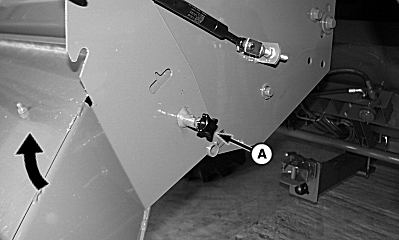

Pull out and rotate knob (A) (both sides).

Lift chopper vane board upward until latched.

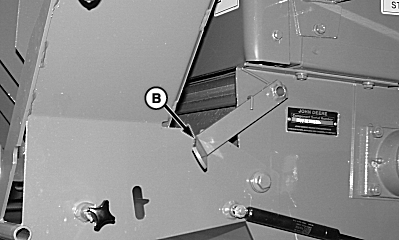

Lift latch (B) and slowly lower chopper vane board until desired position and rotate knob to secure chopper vane board.

A-Knob
B-Latch

OUO6075,000196B -19-18JUL01-1/1
