IMPORTANT: Receptacles are powered whenever batteries are connected.

Connect the service power receptacles to the wires provided.

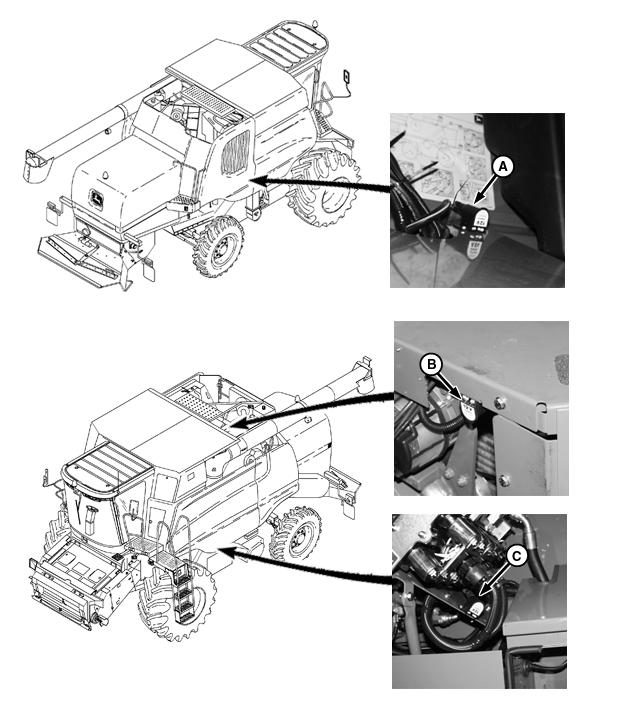

These wires are located in the right-hand side wiring harness (A), the engine compartment (B) and left-hand side wiring harness (C).

OUO6075,0001972 -19-18JUL01-1/1
