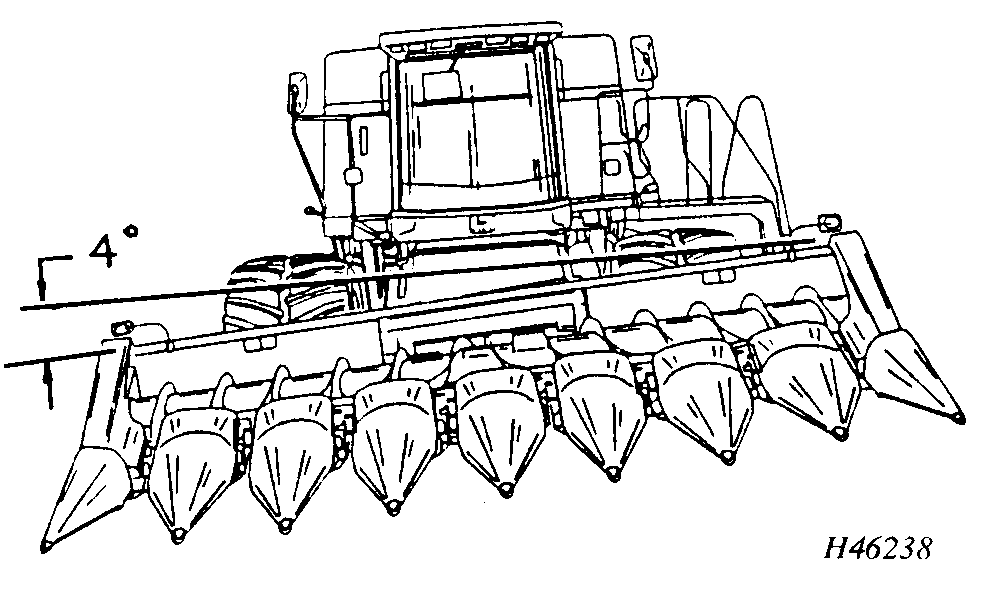

Lateral tilt maintains the horizontal header position relative to the ground.

It uses sensors to determine height at each end of the header. Lateral tilt, tilts the header +/- 4 degrees to equalize the distances to the ground at each end of the header.

If the combine is equipped with Stubble Height Control, they work together to maintain the closest position of the cutterbar to the ground.

The system must be calibrated for each header that is used with the combine, (see Calibration Procedures section).

If the Return to Cut and Stubble Height Control systems are disabled, lateral tilt will still operate.

If the lateral tilt system is disabled, Return to Cut and Stubble Height Control will still operate.

Operation:

1. A properly equipped header is connected to the combine
2. The engine is running
3. The road safety switch is in the field position
4. Lateral Tilt mode is enabled
5. The header engage switch is engaged

OUO6075,0001978 -19-24JUL01-1/2

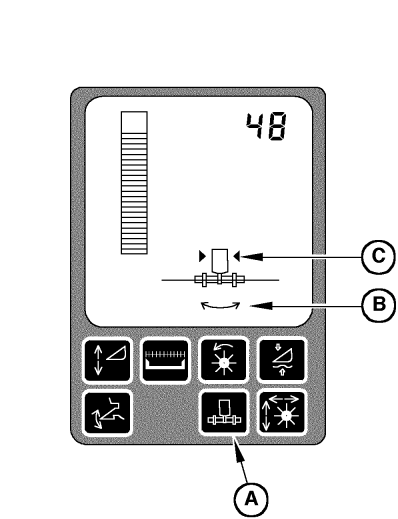

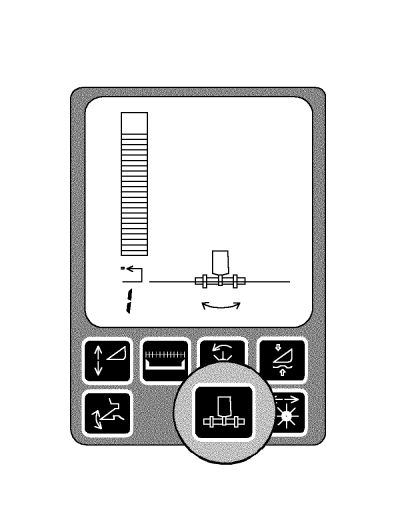

The system is enabled by pressing switch (A) on the corner post display unit. Symbol (B) will appear on the display.

Arrows (C) on each side of the symbol indicate that the system is active.

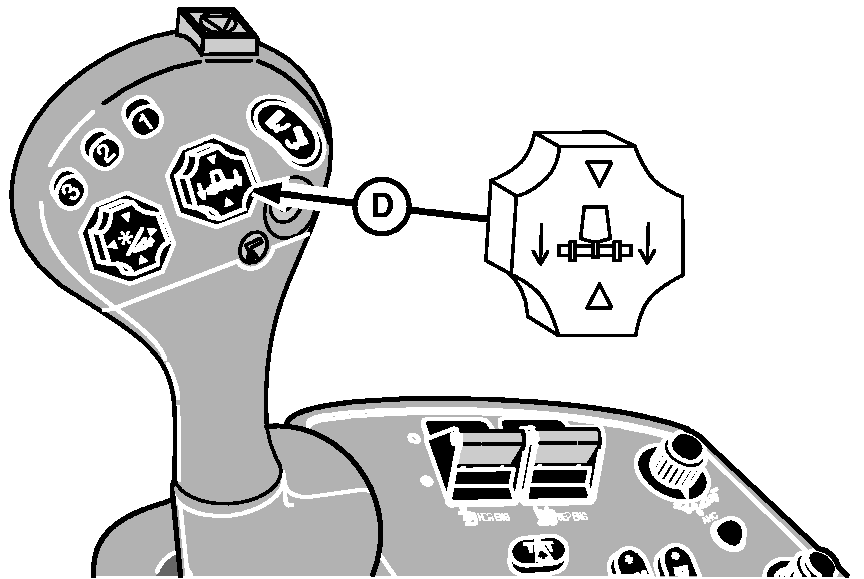

Pressing switch (D) or header raise/lower switch will turn off lateral tilt system.

Press the right side of the switch to tilt header to the right.

Press the left side of the switch to tilt header to the left.

Pressing any of the activation buttons will re-activate the system.

The system can be disabled by pressing switch (A).

A-Lateral Tilt Control Switch
B-Lateral Tilt Symbol
C-Indicator Arrows
D-Lateral Tilt Switch

OUO6075,0001978 -19-24JUL01-2/2
