Adjusting Feeder House Drive/Reel Pump Belt

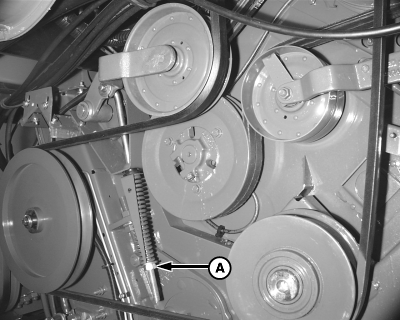

Tighten nut (A) until washer aligns with end of gauge.

A-Nut

H70107
