Replacing Feeder House/Reel Pump Belt

IMPORTANT: It is not necessary to disconnect any hydraulic hoses to replace this belt.

Remove shields.

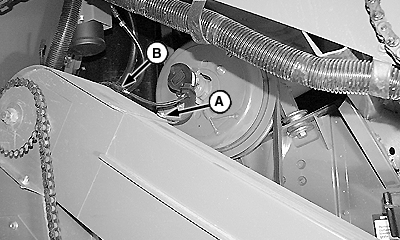

Remove electric clutch module strap cap screw (A) and disconnect connector (B).

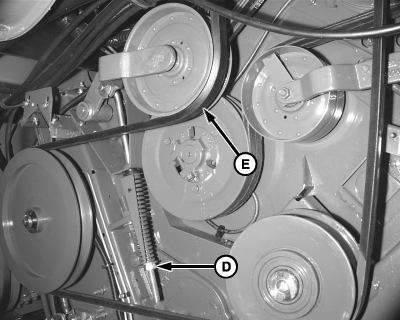

Loosen nut (C) on header drive tensioner idler and remove drive belt (D) from electric clutch.

Remove fixed speed feeder house belt (see Service Feeder House section).

Remove and install new feeder house drive belt in reverse order.

A-Cap Screw
B-Harness Connector
C-Nut, Tensioner
D-Belt

OUO6075,0001987 -19-26JUL01-1/1
