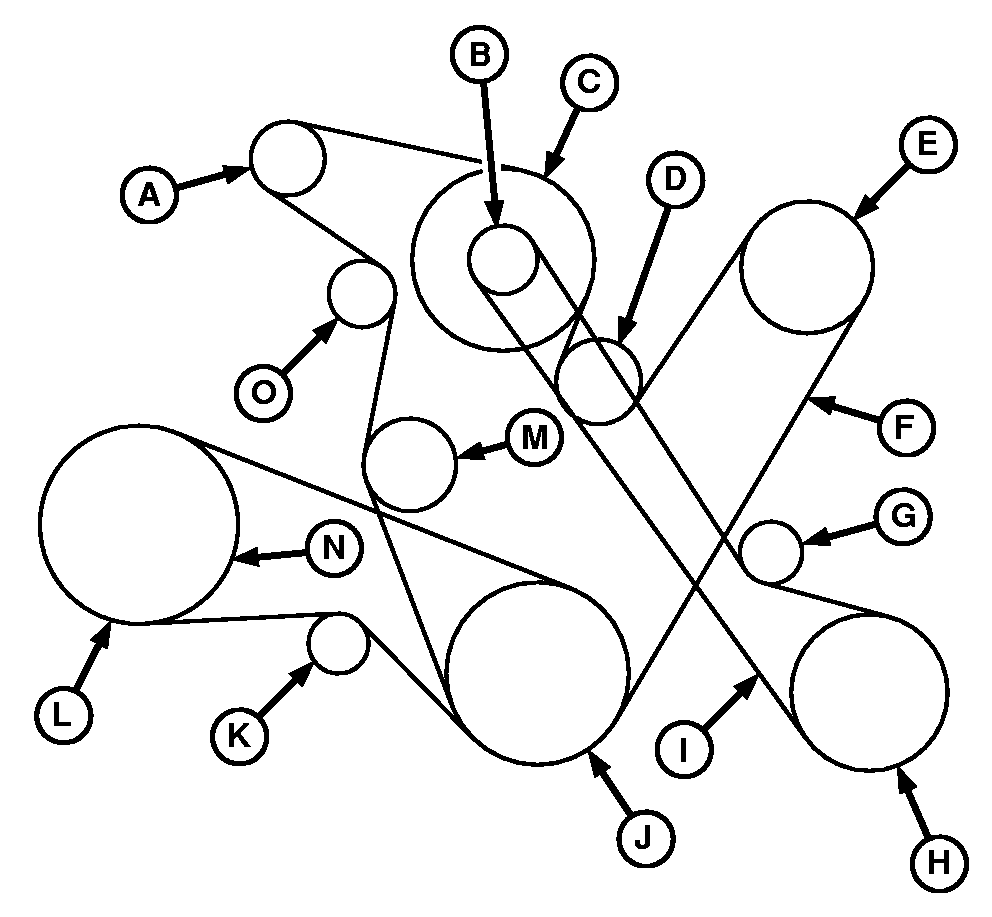

Engine Accessory Drive Belt Routing (6.8 Liter Engine)
A-Alternator
B-Rotary Screen Drive Sheave
C-Rotary Screen/Alternator Sheave
D-Tensioner
E-Air Conditioning Compressor
F-Fan Belt
G-Spring Loaded Tensioner
H-Rotary Screen Driven Sheave
I-Rotary Screen Drive Belt
J-Engine Crankshaft Sheave
K-Spring Loaded Tensioner
L-Alternator Belt
M-Water Pump Sheave
N-Fan Drive Sheave
O-Tensioner
|
