Coolant Temperature Gauge

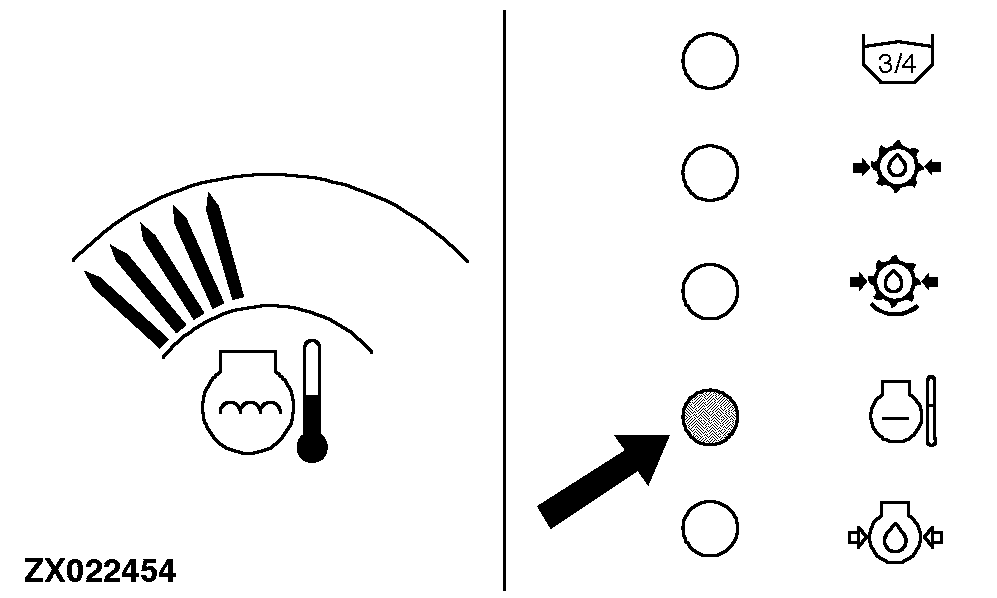

The engine coolant gauge displays the temperature of the engine.

Three or four arrows are displayed for normal operating temperature.

IMPORTANT: If the red ENG TEMPERATURE light on warning display panel comes on and the buzzer sounds, stop engine and check problem immediately.
