Rear Lights

causym CAUTION: NEVER operate rear residue discharge lights when transporting combine. Clear bright lights at the rear of the combine could confuse drivers of other vehicles as they approach from the rear.

The rear lights direct light rearward over the residue discharge area of the combine.

The rear lights also allow the operator to see what is behind the combine when backing up at night.

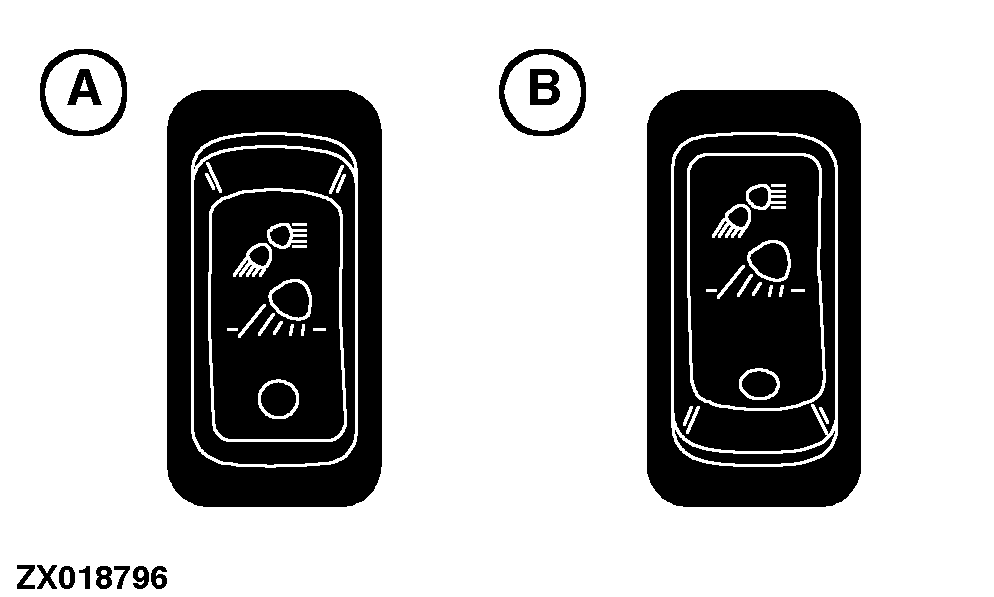

A-OFF
B-ON

ZX018796

Rear Light Switch

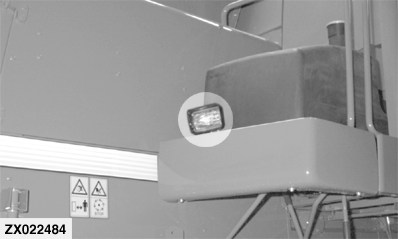

ZX022484

Rear Residue Discharge Light, R.H.

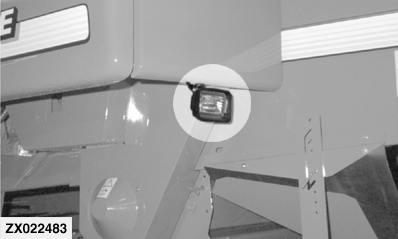

ZX022483

Rear Residue Discharge Light, L.H.

OUZXMAG,0000797 -19-07SEP00-1/1
