IMPORTANT: When reversing, allow header to come to a complete stop before re-engaging.

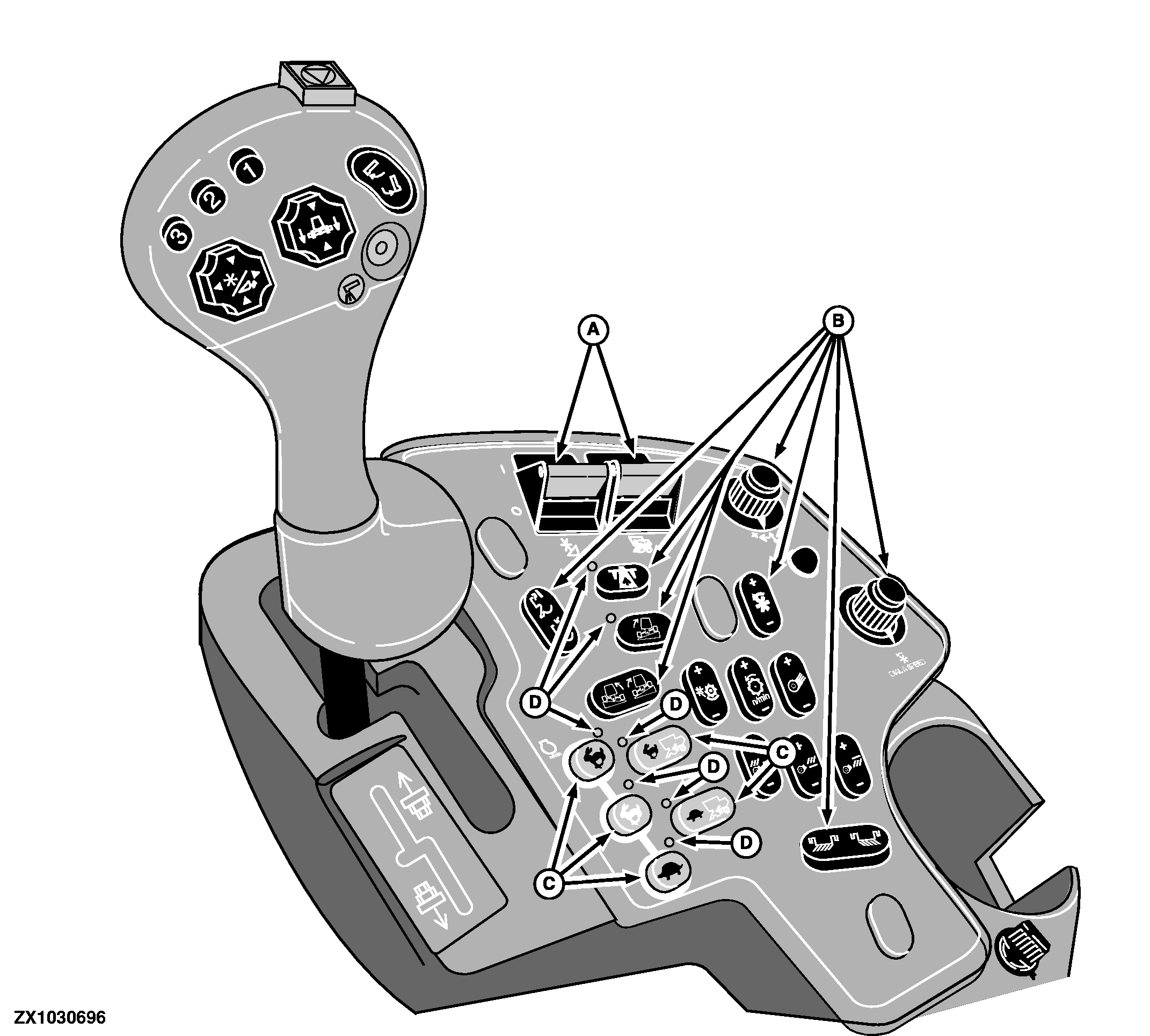

Before operating this combine for the first time, become familiar with the switches and controls. These controls are color "coded" to help you quickly locate them when operating the combine.

Yellow (A) - drive engagement.

Black (B) - operating adjustments and controls.

Orange (C) - ground drive and engine speed.

Green (D) - activation indicators

OUZXMAG,0001854 -19-03OCT02-1/1
