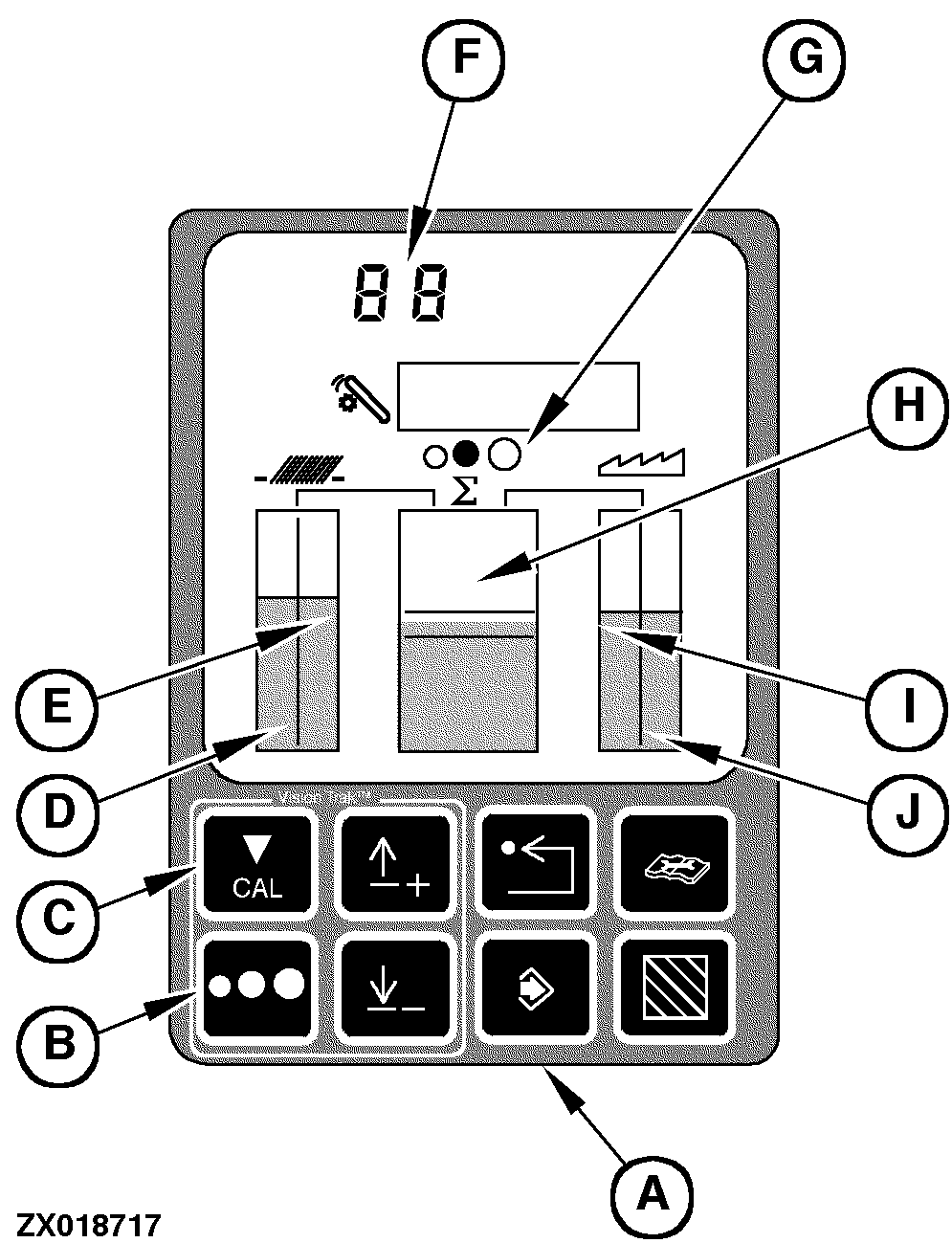

VISIONTRAK Performance Monitor (General Information)The system is active whenever the header is engaged and in some diagnostic modes. Determine the grain size of the crop being harvested. The seed size may be selected by pushing the seed size switch (B). The seed size indicator (G) is located in the center VISIONTRAK Performance Monitor. It will change to show the selected seed size.
The VISIONTRAK Performance Monitor checks grain loss by measuring a representative sample of losses over the cleaning shoe sensors and through the separator.
The four narrow activity indicators (D), (E), (I) and (J) show the activity on each of the four sensors. The system can be set to two modes: 1.
The standard mode averages the shoe sensors and averages the separator sensors.
These activity indicators will not change sensitivity with a change in the system calibration. The wide total activity indicator (H) shows the total of the seed hits from the four sensors. This total can be adjusted so that normal performance will show the bar mid point. How to set standard mode or optional mode, see "Machine Setting Procedure" in "Calibration Procedures" Section. To set the VISIONTRAK, tune the combine's performance to an acceptable loss level. While operating at the desired combine performance, push the calibrate switch (C). This will enter the current operating characteristics into memory and center the center bar graph (total activity indicator) display. The calibration reference number will also be shown (F) for future use. The system is now set up to help the operator maintain the combine performance. |
|
