Angle Sensor Calibration

The angle sensor is calibrated using this procedure. The calibration procedure must be performed when the sensor is replaced or when the display is not accurate.

Prepare Machine For Calibration:

• Make sure the sensor is operating.
• Start the combine and raise the header completely.

OUZXMAG,0001862 -19-04OCT02-1/12

Press the diagnostic switch. dIA will appear on the triple display tachometer.

OUZXMAG,0001862 -19-04OCT02-2/12

Press the calibration switch. CAL and ACF will appear on the tachometer.

OUZXMAG,0001862 -19-04OCT02-3/12

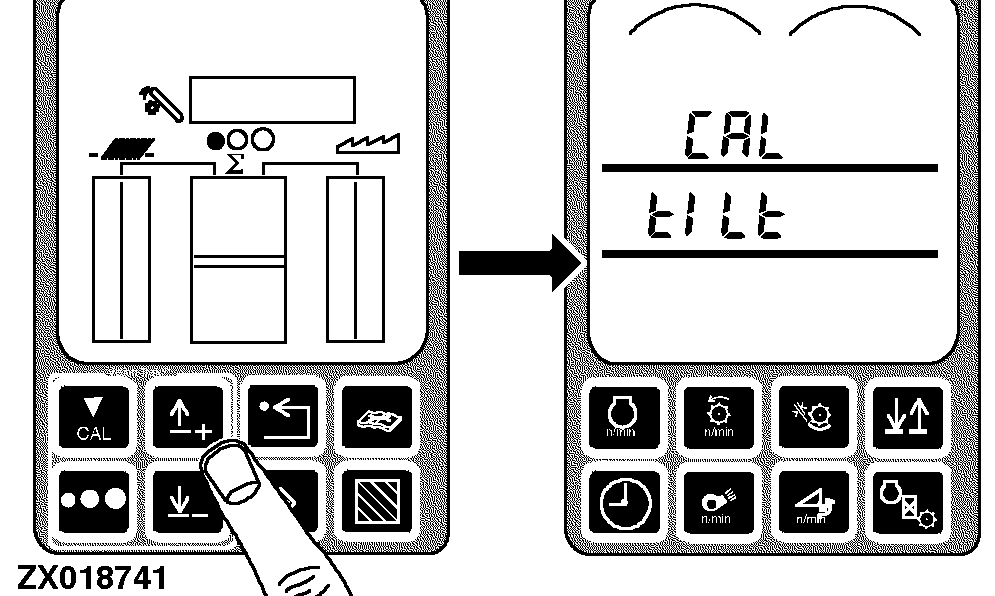

Press the up or down arrow switch to access the tiLt calibration mode. CAL and tiLt will appear on the tachometer.

OUZXMAG,0001862 -19-04OCT02-4/12

Press the enter switch. tiLt and L - dn will appear on the tachometer.

OUZXMAG,0001862 -19-04OCT02-5/12

To establish the left tilt sensor setting:

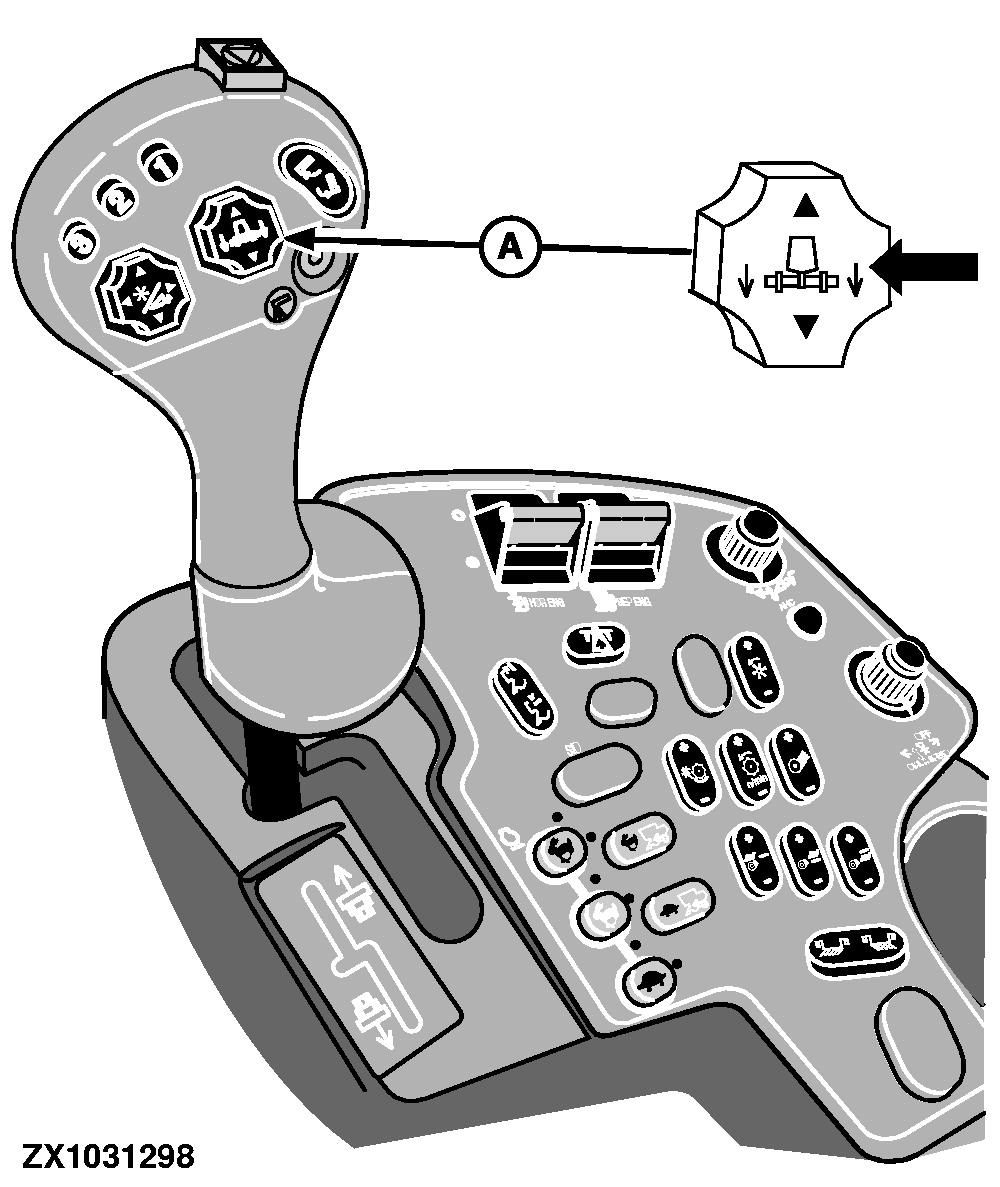

Press and hold the left side of the lateral tilt switch (A) until the feeder house rotates completely to the left. This establishes the left tilt sensor setting.

A-Lateral Tilt Switch

OUZXMAG,0001862 -19-04OCT02-6/12

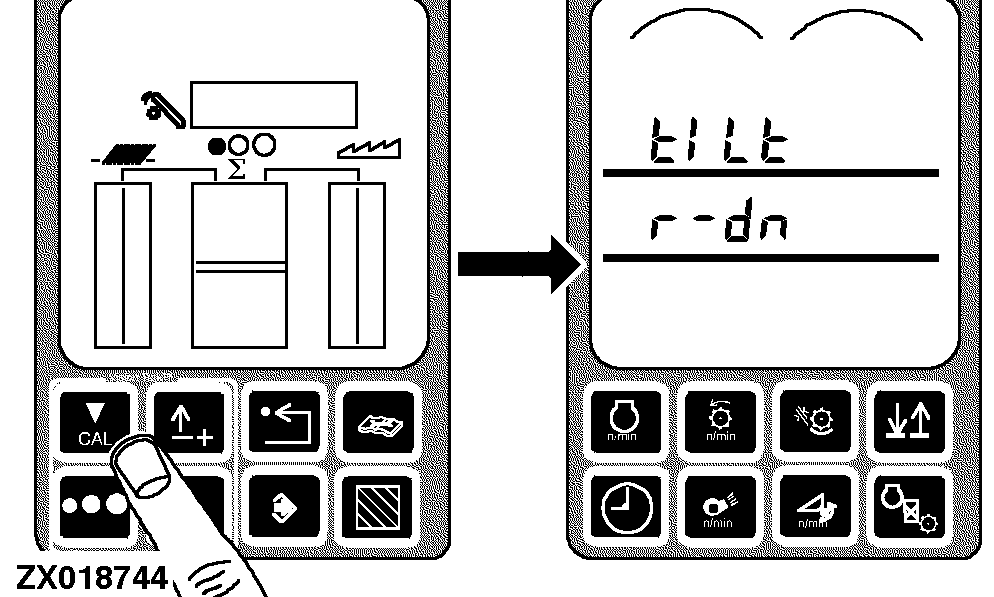

Press the calibration button. tiLt and r - dn will appear on the tachometer.

OUZXMAG,0001862 -19-04OCT02-7/12

To establish the right tilt sensor setting:

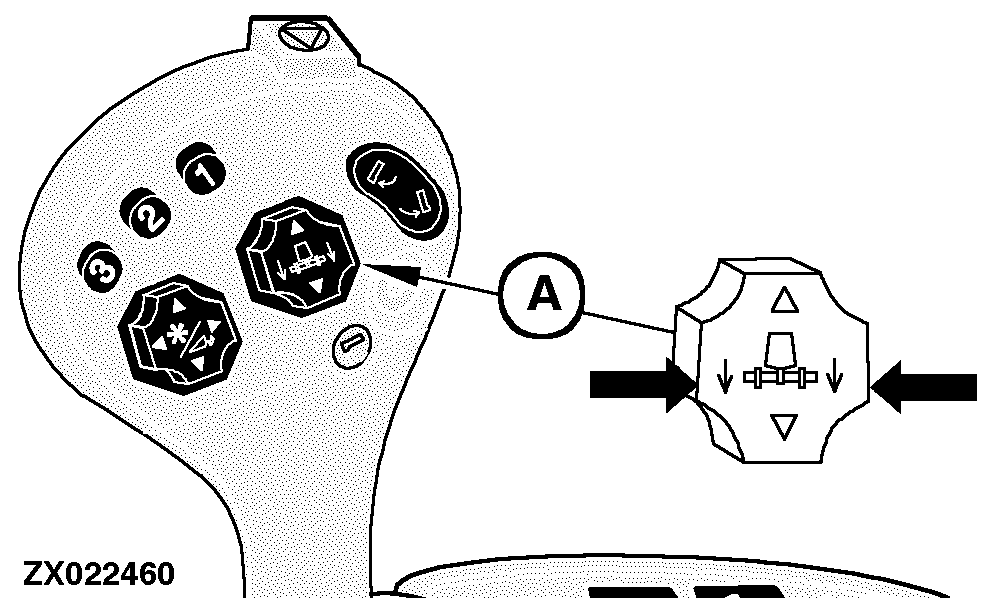

Press and hold the right side of the lateral tilt switch (A), until the feeder house rotates completely to the right. This establishes the right tilt sensor setting.

A-Lateral Tilt Switch

OUZXMAG,0001862 -19-04OCT02-8/12

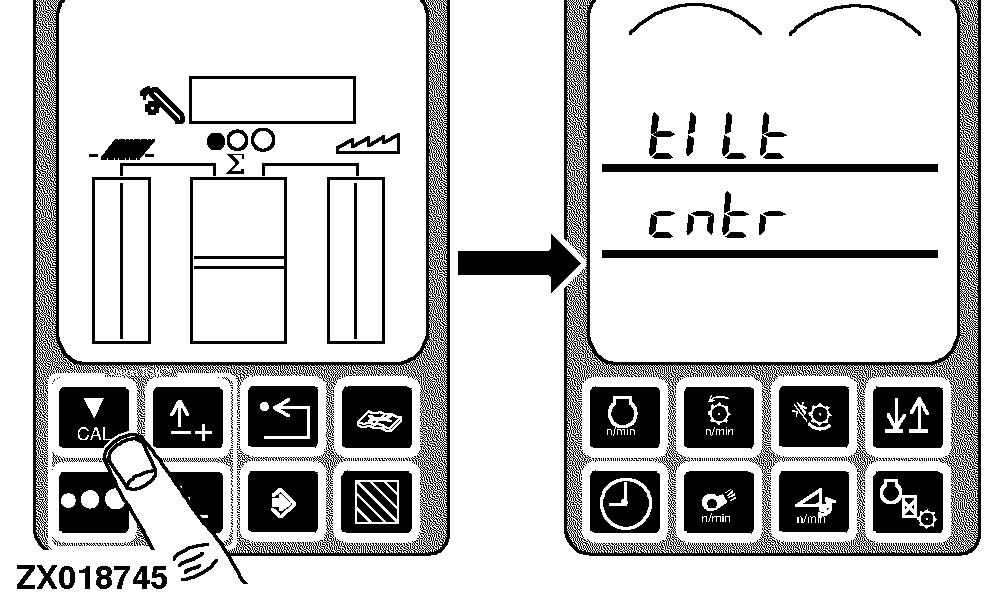

Press the calibration switch. tiLt and cntr will appear on the tachometer.

OUZXMAG,0001862 -19-04OCT02-9/12

Use the lateral tilt switch (A) to level the feeder house. For a visual indication of whether the header is level with the combine chassis, the feeder house is equipped with a manual indicator.

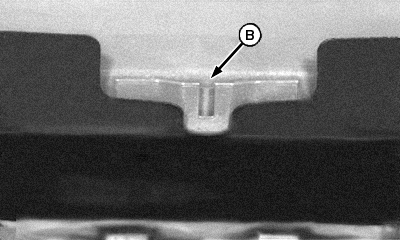

When the notch (B) is in the center of the rubber seal on standard combine, the header is approximately level with the combine body.

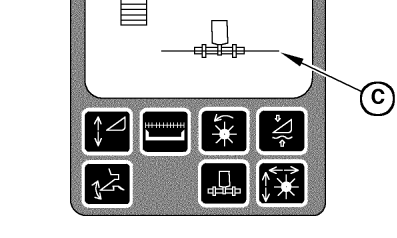

On Standard Combine: When symbol (C) indicates the feederhouse is horizontal but the notch (B) is not in the center of the rubber seal, adjust sensor cable. See "HEADERTRAK Sensor Cable Adjustment (Standard Combine Only)".

On Hillmaster Combine: When symbol (C) indicates the feederhouse is horizontal but the notch (B) is not vertical, adjust sensor links. See "HEADERTRAK Sensor Link Adjustment (Hillmaster Combine Only)".

A-Lateral Tilt Switch
B-Notch
C-Symbol

OUZXMAG,0001862 -19-04OCT02-10/12

Press the calibration switch. EOC will appear on the display.

OUZXMAG,0001862 -19-04OCT02-11/12

Press the enter switch to store the calibration value or press the back arrow switch to abort the calibration (and not save values).

Press the back arrow switch to return to normal operation.

OUZXMAG,0001862 -19-04OCT02-12/12
