HEADERTRAK Sensor Cable Adjustment (Standard Combine Only)

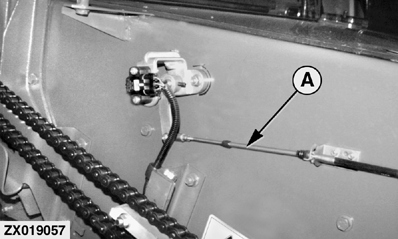

Sensor cable (A) needs to be adjusted when notch (B) is not in the center of the rubber seal while symbol (C) indicates the feederhouse is horizontal.

When the notch (B) is in the center of the rubber seal (the header is approximately level with the combine body) and symbol (C) indicates the feederhouse is horizontal, sensor cable (A) is adjusted correctly.


A-Sensor Cable
B-Notch
C-Symbol
