Tailings Monitor Calibration

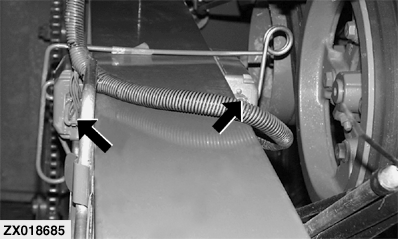

The tailings monitor indicates the volume of material in the tailings elevator using lasers and detectors.

The sensors determine the average amount of material in the elevator by the amount of light being blocked by material. The master tailings sensor sends a message to the VISIONTRAK display.

The tailings elevator is re-zeroed every time the separator is engaged at high engine idle for 2 minutes without the feeder house being engaged. This reoccurs and is stored every 3 seconds until the feeder house is engaged.

NOTE: The sensitivity of the tailings elevator volume calibration is affected by the seed size selected for the grain loss monitor.

The scaling of the tailings monitor can be altered through the diagnostic system on the corner post by entering machine setting addresses E00-100, 101 and 102.
