Access Ladder Positions

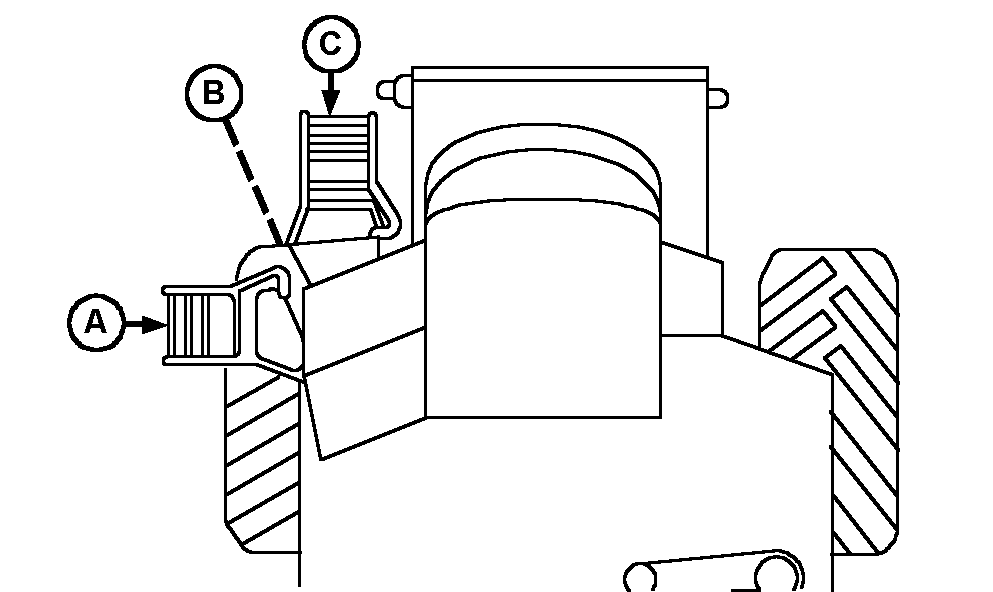

Normal field operating position (A).

Pull down latch and swing ladder to position (B) for combines with a small header, a ladder extension or duals.

From the cab landing, push down on the latch and swing ladder to position (C) before driving on roadways and for truck transport.

causym CAUTION: Always swing the ladder to position (C) before transporting on public roadway, in order to reduce combine width.

IMPORTANT: The long ladder extension required on machines equipped with axle spacers, etc. will interfere with the platform drive shaft when the ladder is swung to position (C). Raising or lowering the feeder house could damage the ladder, the drive shaft or the drive shaft shield. Place ladder in position (B) in this situation.

H59549
ZX018778


A-Field Position
B-Not used
C-Road Transport Position

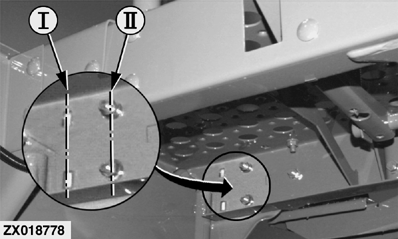

I-Retracted Ladder Position
II-Extended Ladder Position

OUZXMAG,0001866 -19-04OCT02-1/1
